Technical Parameters
Item | S220 | S260 |
POWERTRAIN | ||
Engine brand model | YTO | YTO |
Number of cylinders | 6 | 6 |
Rated engine speed | 2200 r/min | 2200 r/min |
Rated power | 220 hp | 260 hp |
TRANSMISSION | ||
Clutch | 14 in, dry, dual action | 14 in, dry, dual action |
Shift mode | Sliding gear/synchronizer with shuttle gear | Sliding gear/synchronizer with shuttle gear |
Number of gears | 16F+16R | 16F+16R |
Four-wheel drive control | Mechanical | Mechanical |
Differential lock | Mechanical | Mechanical |
Brake form | wet, disc type | wet, disc type |
PTO spline & speed | 6/8/21 keys; 760/850 | 6/8 /21 keys; 760/850 |
TIRES | ||
Front wheels | 18.4–26 | 18.4–26 |
Rear wheels | 20.8–38 | 20.8–38 |
Optional wheels | 520/85R38–420/85R28; 650/65R38–540/65R28 | 520/85R38–420/85R28; 650/65R38–540/65R28 |
IMPLEMENT & HYDRAULICS | ||
Lifter control type | Position control, floating adjustment | Position control, floating adjustment |
Number of multiway valves | 3 | 3 |
DIMENSIONS & WEIGHT | ||
Dimensions | 5500×2755×3200 mm (CAB) | 5500×2755×3200 mm (CAB) |
Wheelbase | 2900 mm | 2900 mm |
Ground clearance | 380 mm | 380 mm |
Structural mass | 6500 kg (CAB) | 6500 kg (CAB) |

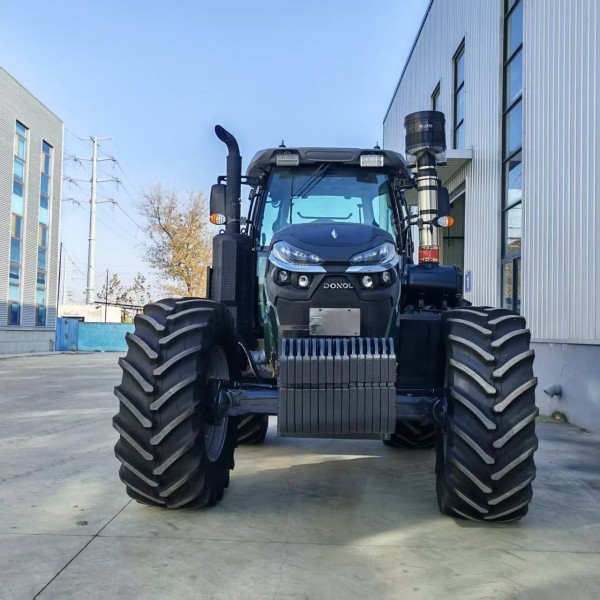

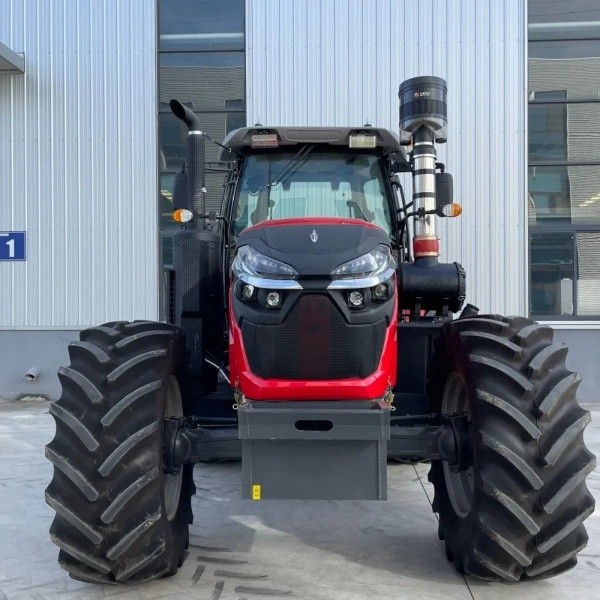

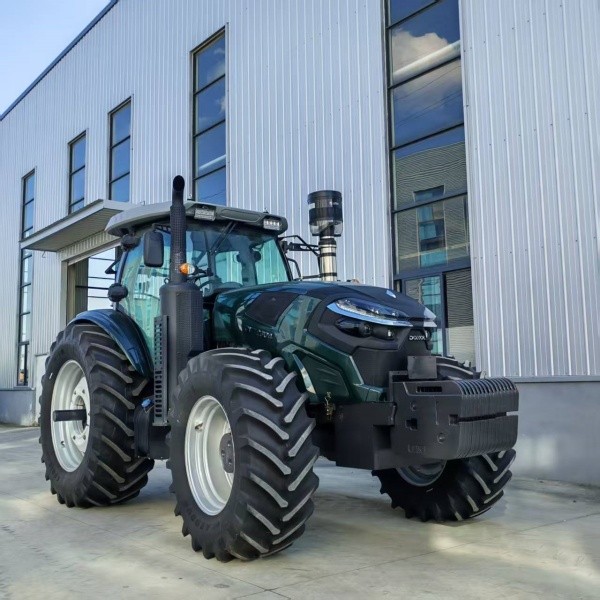

The DONOL DN-S Series is the largest and most powerful tractor platform in the DONOL cost-effective product range. Covering 200HP to 260HP, it is developed for large farms, agricultural contractors and demanding field operations that require serious power without unnecessary complexity.
Representative models include the 220HP DONOL DN-S220 and the flagship 260HP DN-S260. With a 6,500 kg chassis, six-cylinder engine and large agricultural tyres, the DONOL DN-S Series is built for heavy cultivation, large implements and long working days.
Giant DONOL Power
DONOL DN-S tractors are powered by six-cylinder YTO diesel engines rated at 2,200 r/min. Available 220HP and 260HP configurations provide the power required for deep tillage, large-scale soil preparation, seeding and heavy transport.
The 260HP DONOL DN-S260 is the flagship of the DONOL cost-effective tractor range. It brings high-horsepower capability to customers who prefer reliable mechanical systems, straightforward operation and practical maintenance.
Massive DONOL Heavy-Duty Chassis
A 2,900 mm wheelbase and 6,500 kg structural mass give the DONOL DN-S Series the stability required to transfer high engine power to the ground.
Large 18.4–26 front and 20.8–38 rear tyres provide a strong footprint for traction and heavy field work. Optional radial tyre combinations are available for different soil conditions and traction requirements.
16F+16R DONOL Transmission
The 16F+16R transmission provides a balanced range of forward and reverse speeds for field operation, implement positioning and transport. Synchronisers and shuttle gear make speed selection and directional changes more convenient.
Mechanical four-wheel drive, a mechanical differential lock and wet disc brakes provide the traction, control and braking performance required for heavy-duty operation.
Built for Large Implements

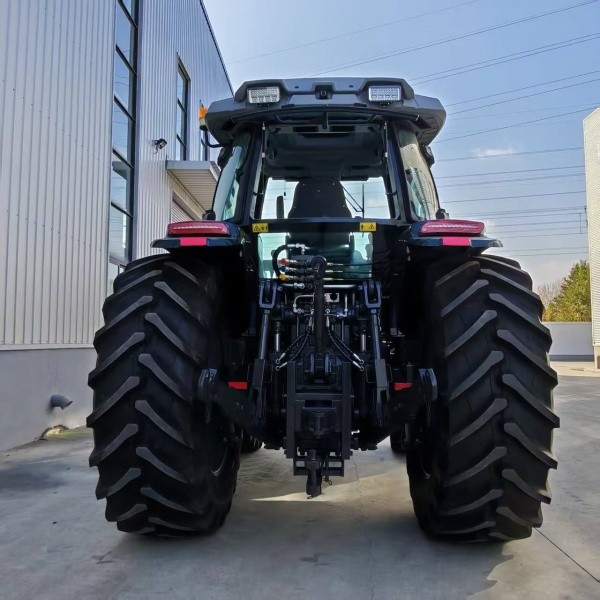

The rear PTO provides six-, eight- or 21-spline options with 760/850 r/min speeds. Position control, floating adjustment and three multiway hydraulic valves support a broad selection of large agricultural implements.
The DONOL DN-S Series is suitable for:
Deep ploughing and heavy cultivation
Large-scale soil preparation
Wide seeders and fertilising equipment
Heavy disc harrows and subsoilers
Large trailers and farm transport
Grassland and agricultural contracting
Long-duration field operations
With power up to 260HP, a massive chassis and proven mechanical technology, the DONOL DN-S Series delivers high-horsepower productivity with the practical value that defines DONOL tractors.
