Ready-to-publish Product Description

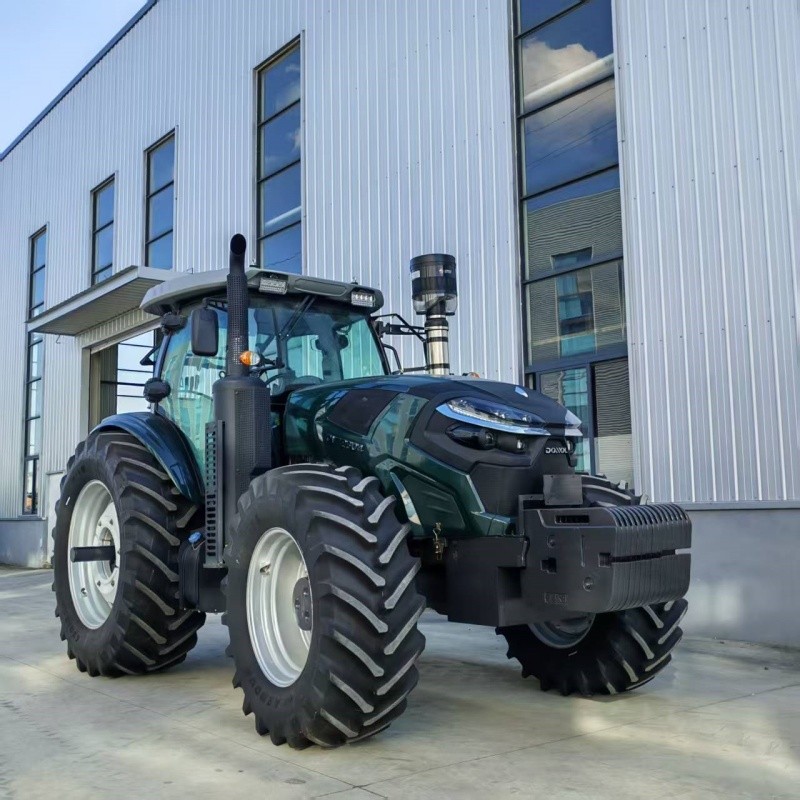

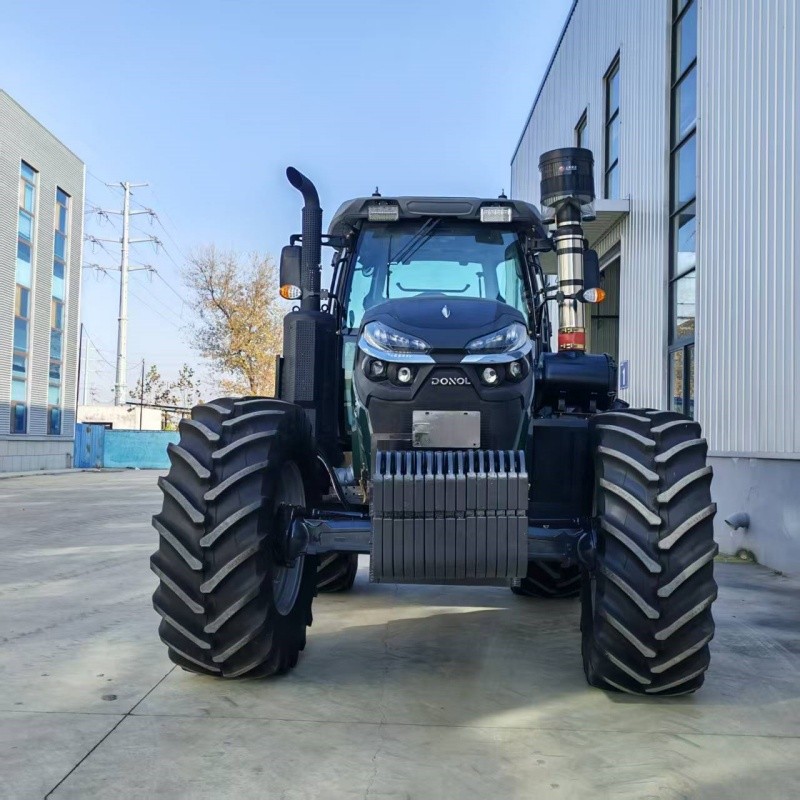

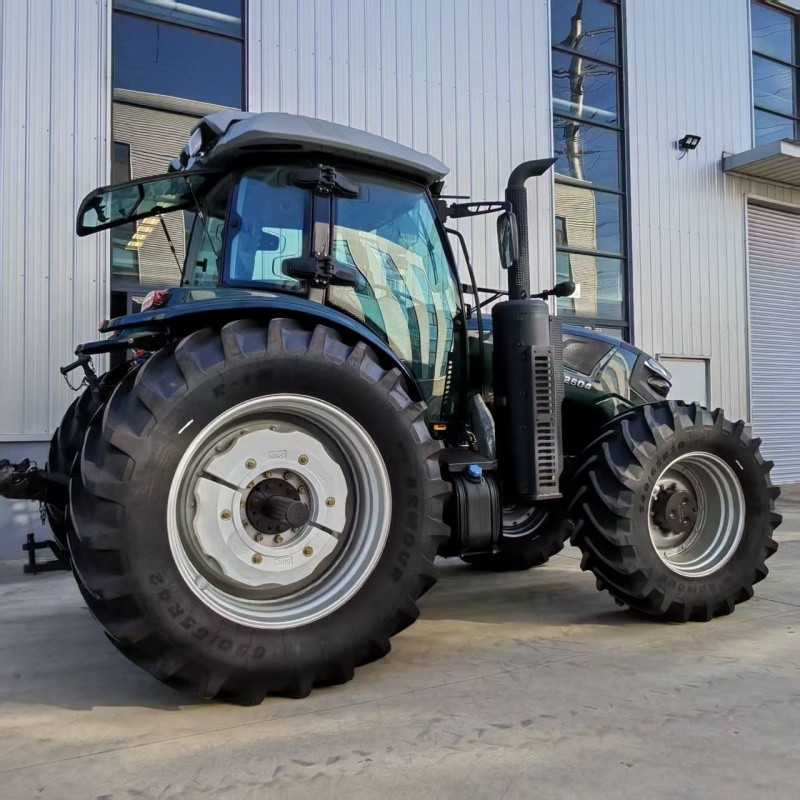

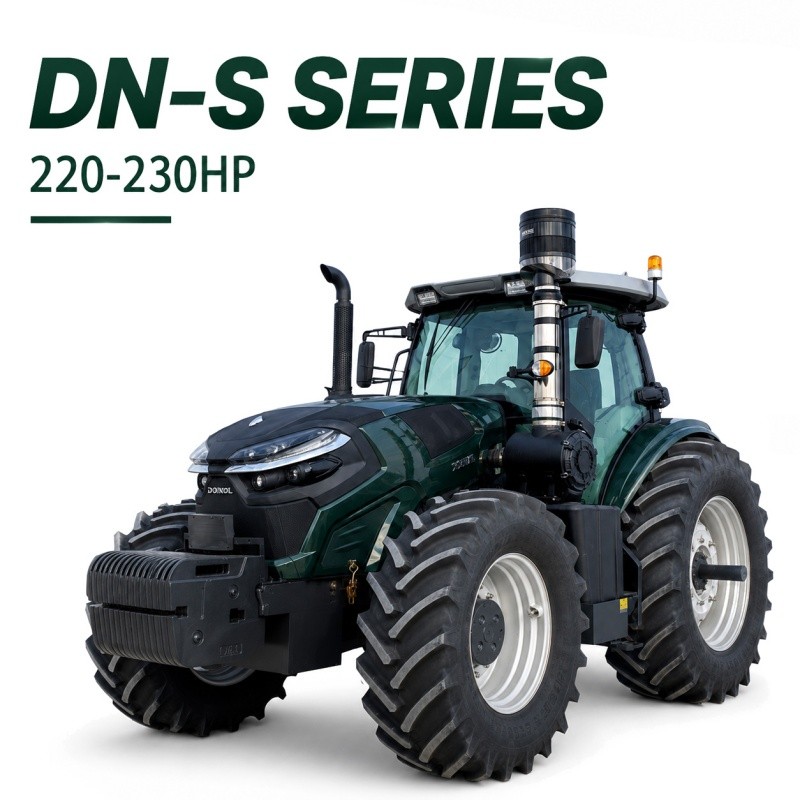

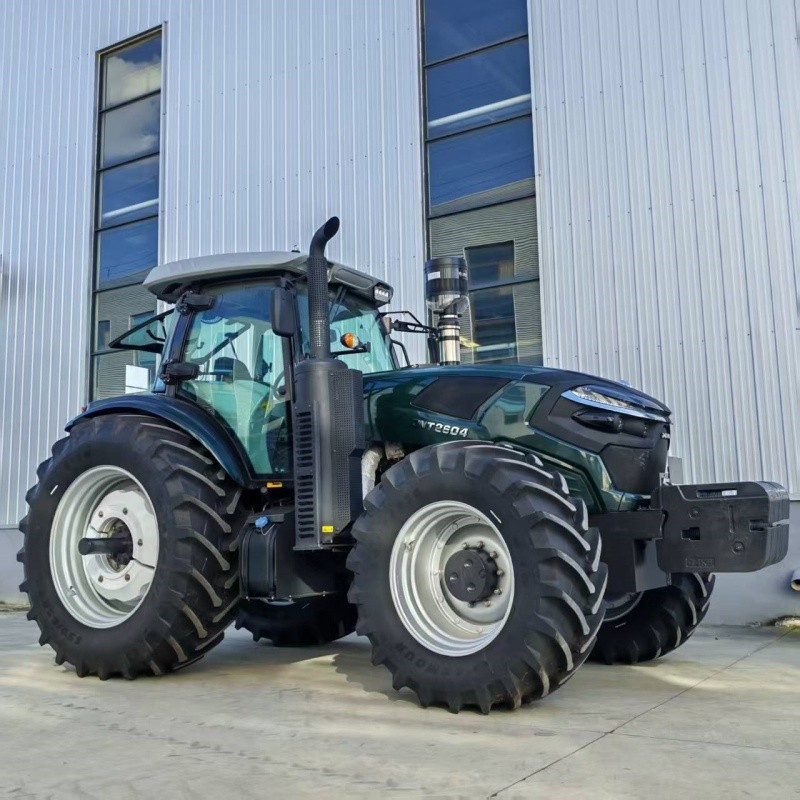

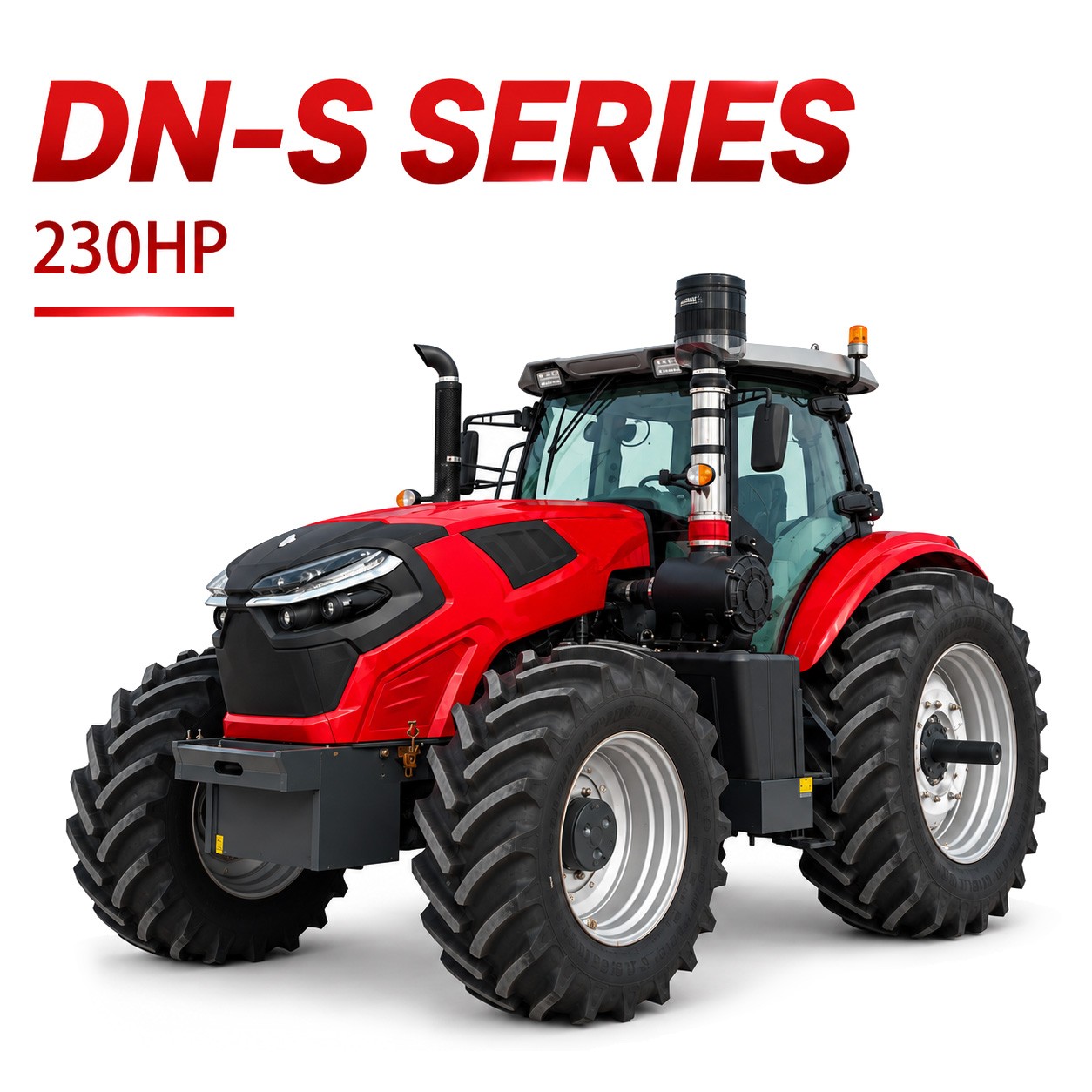

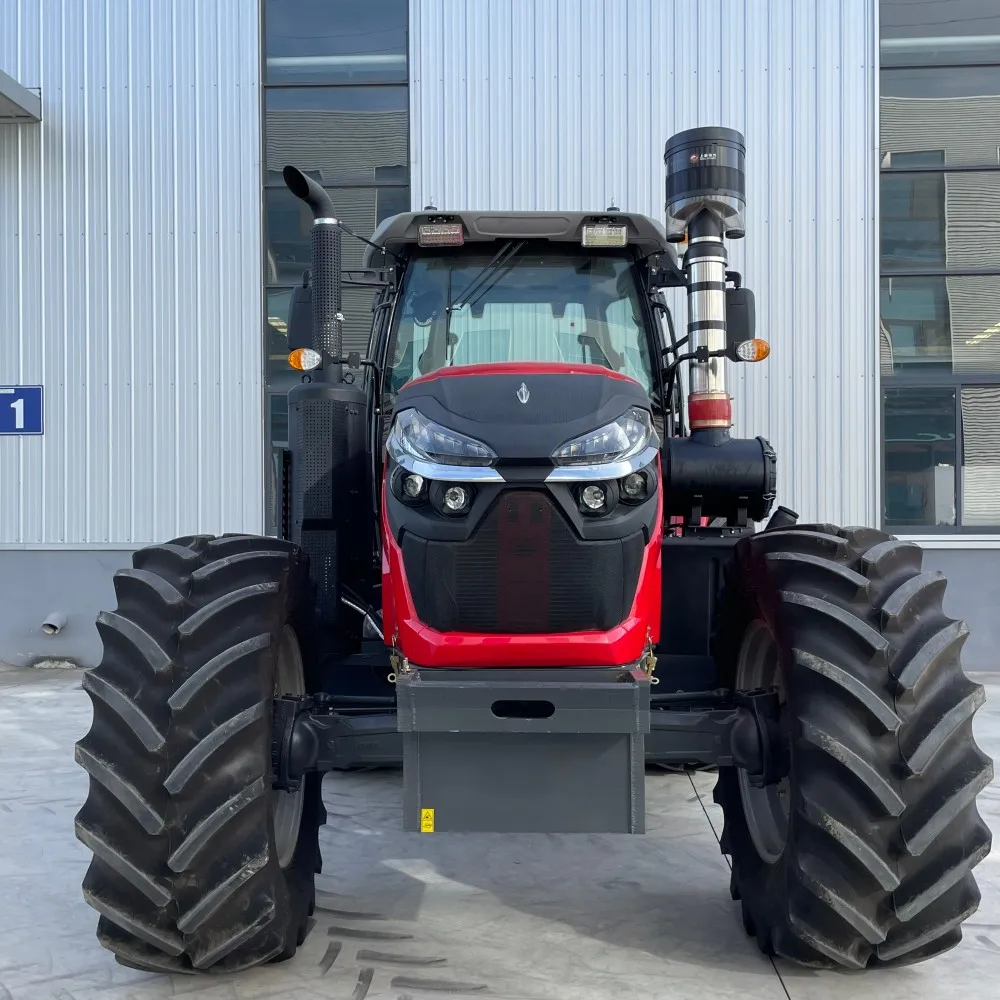

The DONOL 2304 is a 230 HP 4WD wheeled tractor developed for South American grain, livestock and mixed-farming operations. Its YTO LR6M3LR engine, 16 forward + 16 reverse gears, synchromesh transmission, and full-hydraulic steering provide a practical power platform for daily field work, implement operation and farm transport.
As part of the heavy-duty TS range, the 2304 combines a 16-forward/16-reverse synchromesh transmission, four hydraulic outlet sets, quick-hitch three-point linkage, swinging drawbar and radial tyres. This configuration is designed for demanding large-field operations, contractor fleets and high-capacity implements. In South America, the page should connect the tractor with broad-acre grain production, sugarcane support, pasture renovation and heavy farm transport, while asking buyers to confirm implement power and hydraulic requirements with the DONOL team.
Key Selling Points
· 230 HP 4WD power platform with YTO LR6M3LR
· 16 forward + 16 reverse gears, synchromesh transmission for practical field and transport operation
· 4 sets hydraulic outlets, 540/1000 PTO and three-point linkage
· Deluxe air-conditioned cab with rear-view camera with adjustable suspension seat
· Radial tyres: front420/85R28, rear 540/85R38
· 380L fuel capacity for extended working schedules
Technical Highlights
Specification Item | Specification |
Model | DN2304 |
Product Name | Wheeled Tractor |
Drive Type | 4WD |
Series / Chassis Platform | TS Platform |
Rated Power | 230 HP |
Overall Dimensions (L × W × H) | 5500 × 2755 × 3200 mm |
Wheelbase | 2900 mm |
Minimum Ground Clearance | 385 mm |
Operating Weight | 8000 kg |
Engine Model | YTO LR6M3LR |
Engine Configuration | Six-cylinder Diesel Engine |
Emission Standard | China Non-road Stage II |
Rated Engine Speed | 2300 r/min |
Clutch | 14-inch Dual-acting Dry Clutch with Hydraulic Clutch Control |
Transmission | 16 Forward + 16 Reverse Gears, Synchromesh Transmission |
Gear Shift Type | Synchromesh Shift |
Fuel Tank Capacity | 400 L |
Steering System | Full-hydraulic Steering |
Hydraulic Outlets | 4 sets |
Hydraulic System | Floating Control; Forced Lifting and Lowering |

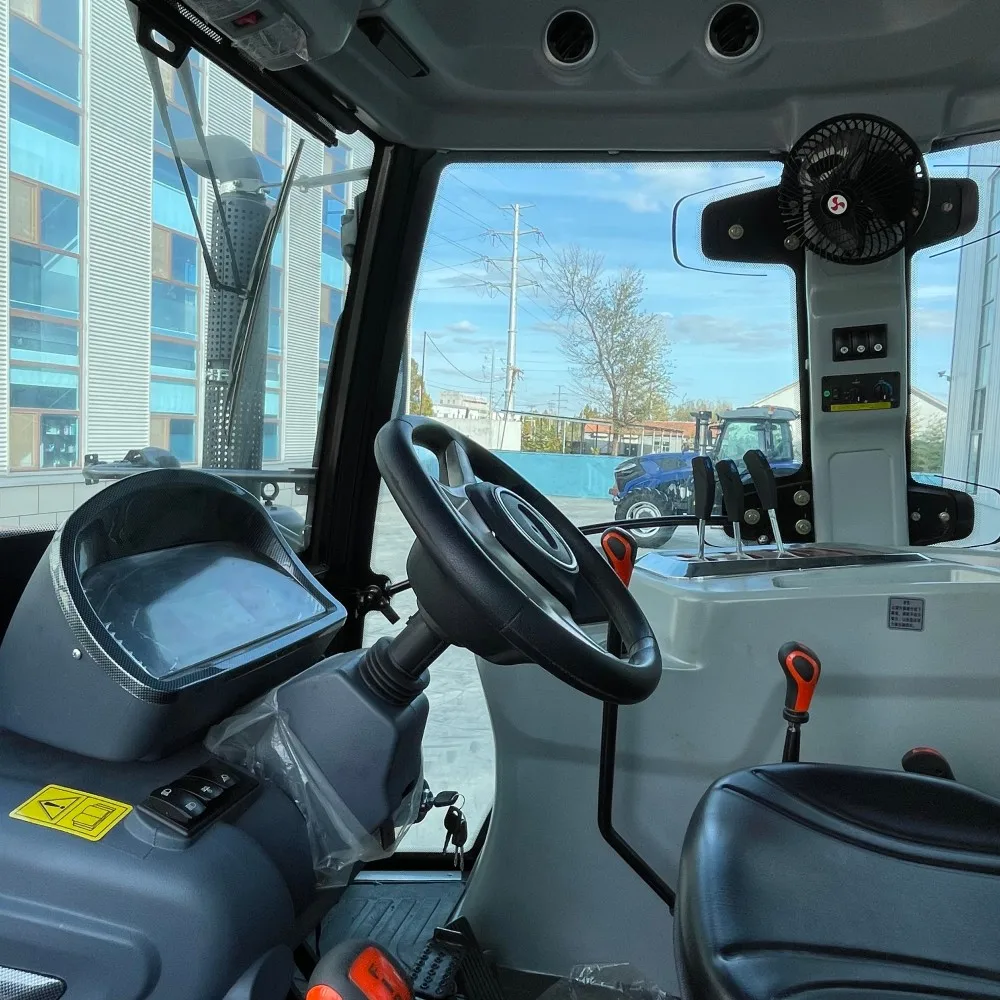

Operator Platform / Cab | Deluxe Air-conditioned Cab with Rear-view Camera |
Seat | Comfortable Adjustable Suspension Seat |
Brake Type | Wet Disc Brake |

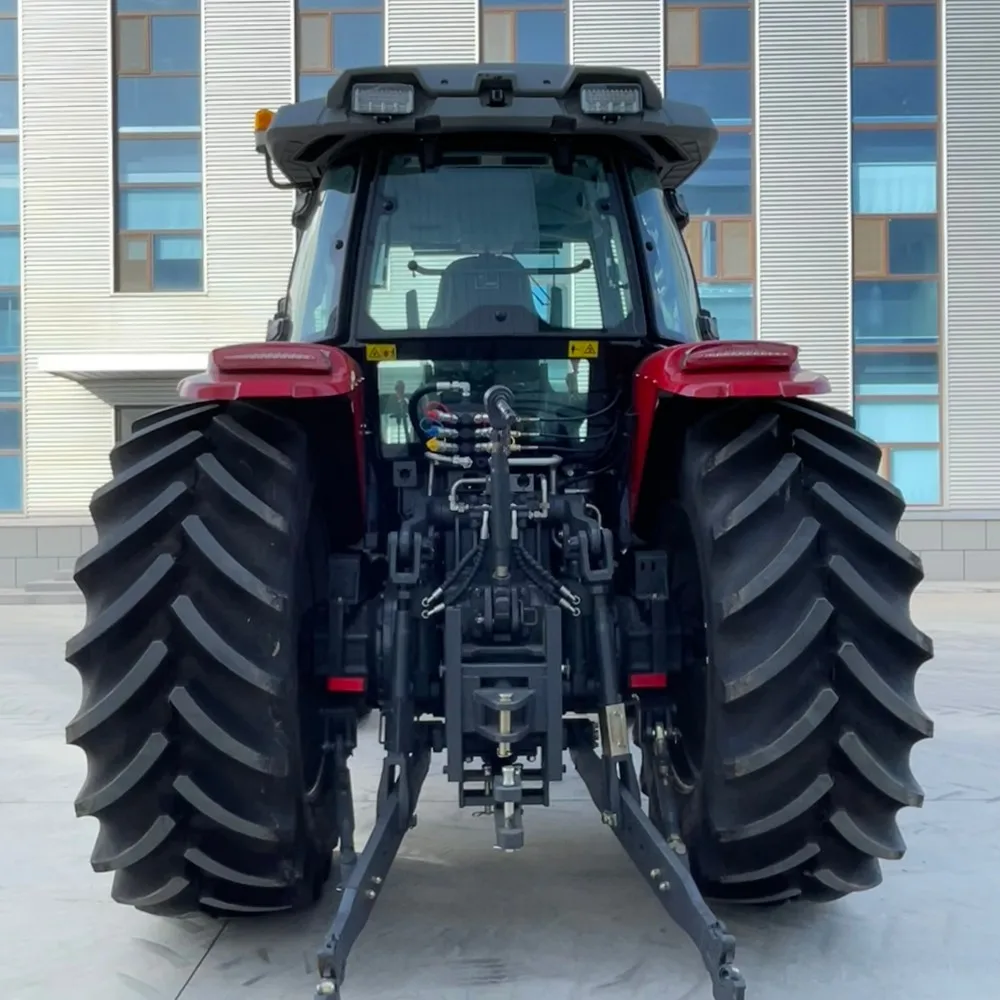

Three-point Hitch | Category III Rear Three-point Hitch with Quick Hitch and Swinging Drawbar |
Tyre Size (Front / Rear) | Radial Tyres: Front 420/85R28; Rear 540/85R38 |
PTO Speed | 540/1000 rpm |
Ballast Weights | Front Ballast: 74 kg × 15; Rear Ballast: 60 kg × 4 |
Standard Equipment | Electrical Socket and Toolbox |
Suggested FAQ Content
· What farm operations is the DONOL 2304 designed for?
· Which implements can be matched with the 2304?
· Is the 2304 suitable for soybean, corn, sugarcane or cattle farms?
· What tyre, ballast and hydraulic options are available?
· How can South American distributors obtain parts and technical support?
