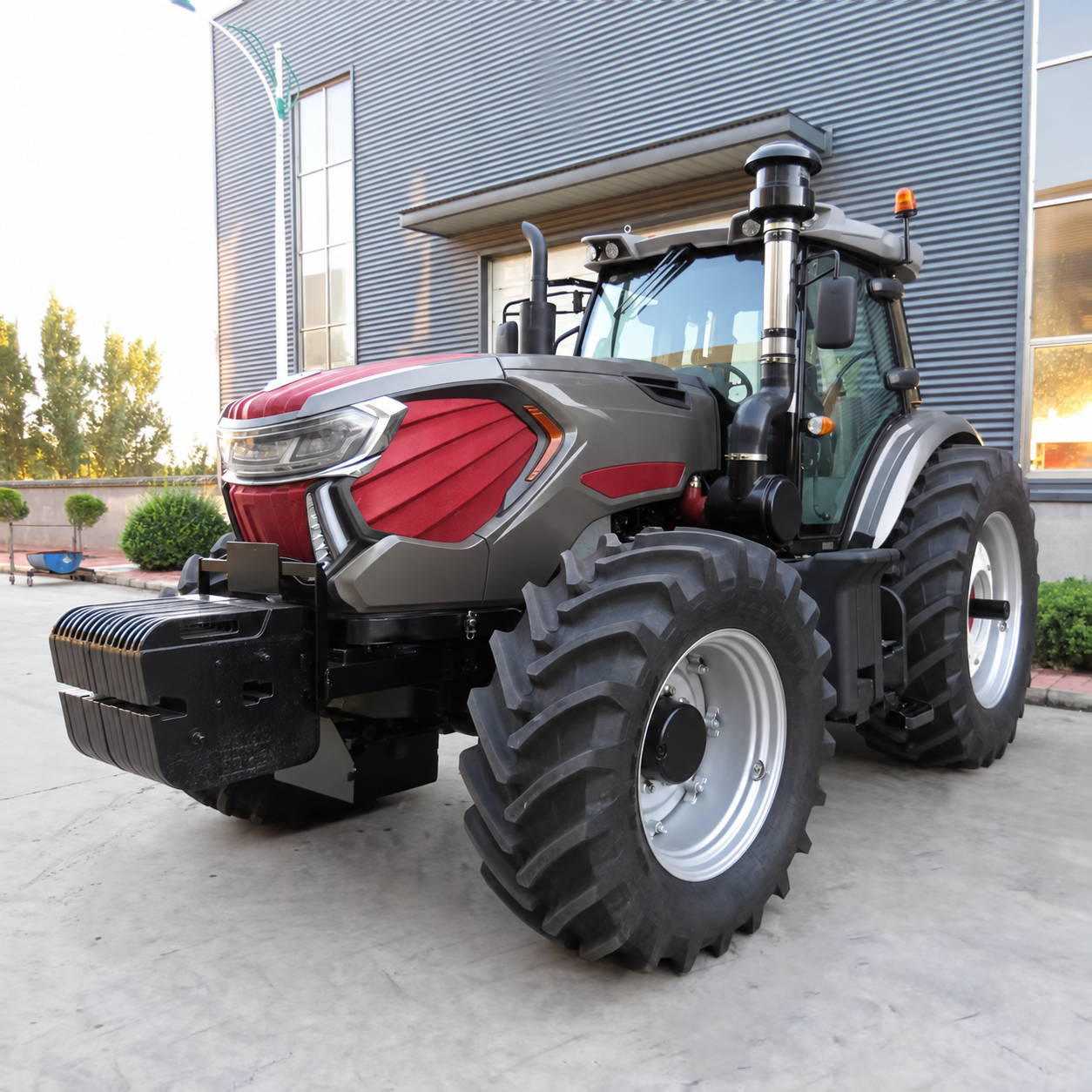

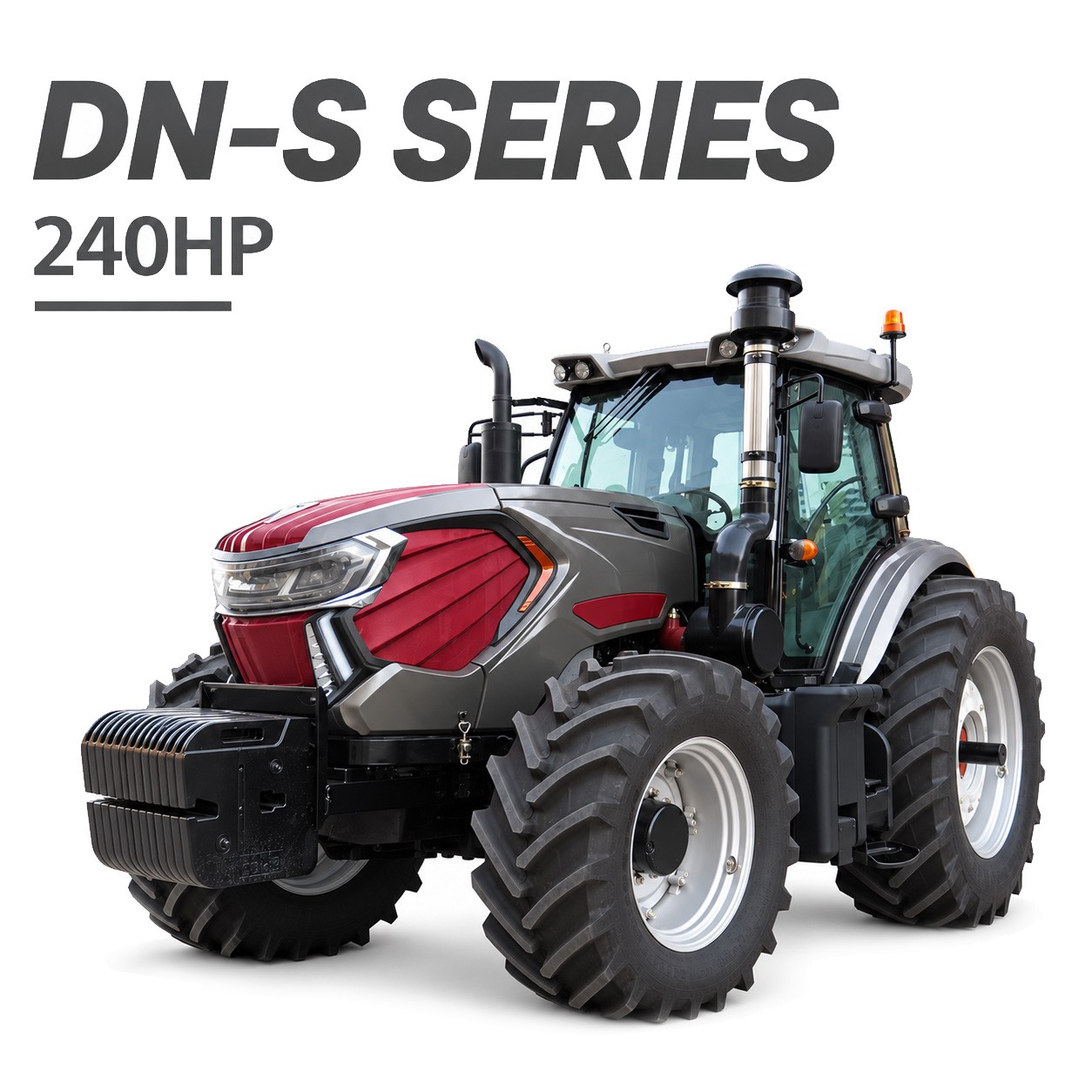

DN2404–240HP–TS Platform

Model

DN2404

Product Name

Wheeled Tractor

Drive Type

4WD

Series / Chassis Platform

TS Platform

Rated Power

240 HP

Overall Dimensions (L × W × H)

5500 × 2755 × 3200 mm

Wheelbase

2900 mm

Minimum Ground Clearance

385 mm

Operating Weight

8000 kg

Engine Model

YTO LR6M3LR

Engine Configuration

Six-cylinder Diesel Engine

Emission Standard

China Non-road Stage III

Rated Engine Speed

2300 r/min

Clutch

14-inch Dual-acting Dry Clutch with Hydraulic Clutch Control

Transmission

16 Forward + 16 Reverse Gears, Synchromesh Transmission

Gear Shift Type

Synchromesh Shift

Fuel Tank Capacity

400 L

Steering System

Full-hydraulic Steering

Hydraulic Outlets

4 sets

Hydraulic System

Floating Control; Forced Lifting and Lowering

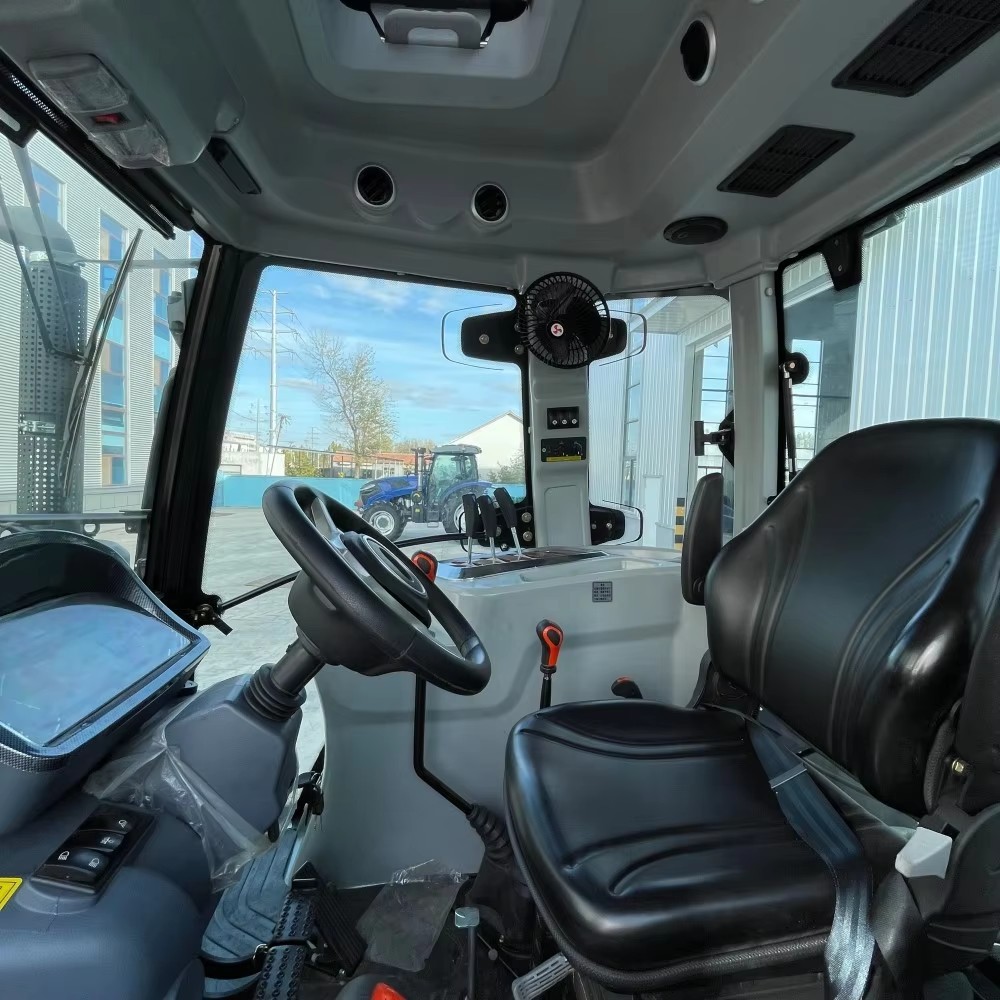

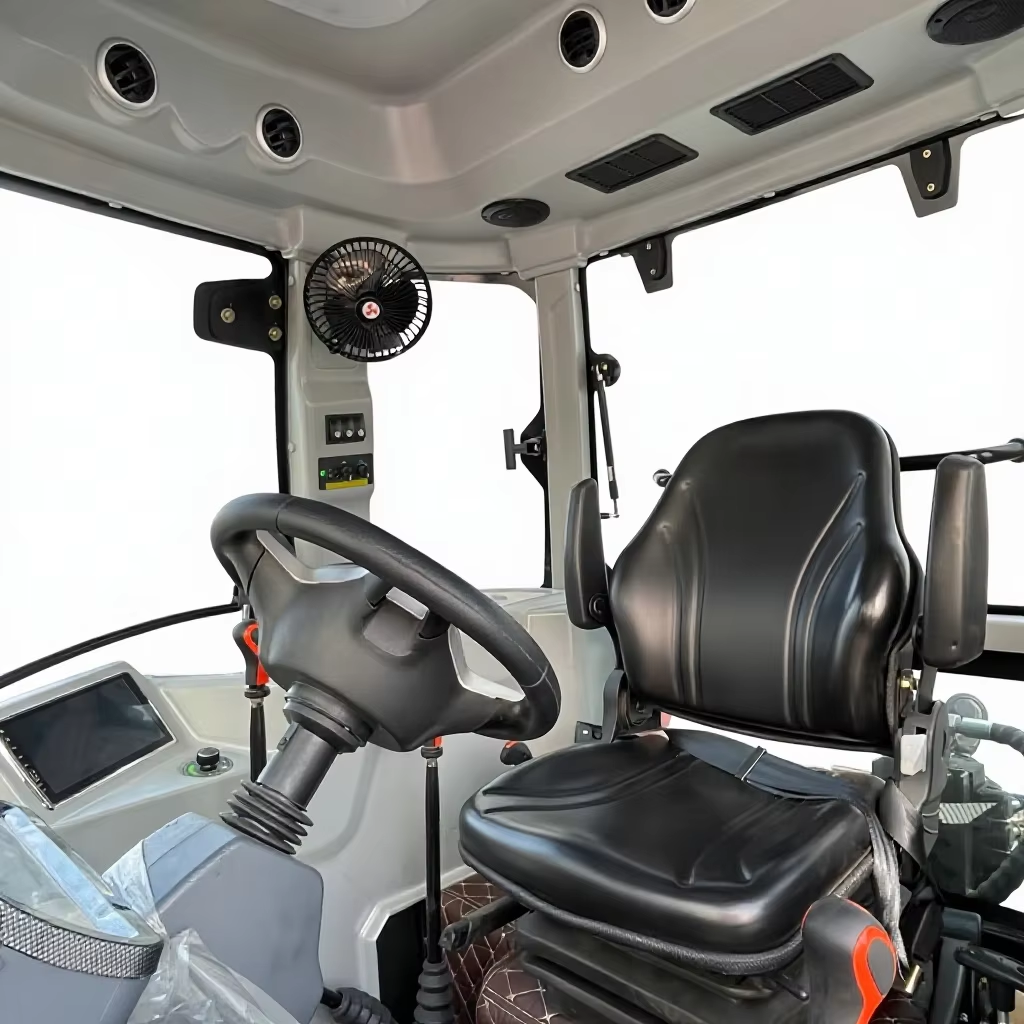

Operator Platform / Cab

Deluxe Air-conditioned Cab with Rear-view Camera

Seat

Comfortable Adjustable Suspension Seat

Brake Type

Wet Disc Brake

Three-point Hitch

Category III Rear Three-point Hitch with Quick Hitch and Swinging Drawbar

Tyre Size (Front / Rear)

Radial Tyres: Front 420/85R28; Rear 540/85R38

PTO Speed

540/1000 rpm

Ballast Weights

Front Ballast: 74 kg × 15; Rear Ballast: 60 kg × 4

Standard Equipment

Electrical Socket and Toolbox
