DONOL DN-C Series 180–200HP Farm Tractors

DONOL DN-C Series 180–200HP Farm Tractors

Send Inquiry
Content


Technical Parameters

Specification Item

Specification

Specification

Model

DN1804

DN2004

Product Name

Wheeled Tractor

Wheeled Tractor

Drive Type

4WD

4WD

Series / Chassis Platform

TC Platform

TC Platform

Rated Power

180 HP

200 HP

Overall Dimensions (L × W × H)

5310 × 2325 × 3000 mm

5310 × 2325 × 3000 mm

Wheelbase

2720 mm

2720 mm

Minimum Ground Clearance

490 mm

490 mm

Operating Weight

5600 kg

5600 kg

Engine Model

YTO LR6M3L

YTO LR6M3L

Engine Configuration

Six-cylinder Diesel Engine

Six-cylinder Diesel Engine

Emission Standard

China Non-road Stage II

China Non-road Stage II

Rated Engine Speed

2300 r/min

2300 r/min

Clutch

14-inch Dual-acting Dry Clutch with Hydraulic Clutch Control

14-inch Dual-acting Dry Clutch with Hydraulic Clutch Control

Transmission

16 Forward + 8 Reverse Gears, Synchromesh Transmission

16 Forward + 8 Reverse Gears, Synchromesh Transmission

Gear Shift Type

Synchromesh Shift

Synchromesh Shift

Fuel Tank Capacity

380 L

380 L

Steering System

Full-hydraulic Steering

Full-hydraulic Steering

Hydraulic Outlets

3 sets

3 sets

Hydraulic System

Floating Control; Forced Lifting and Lowering

Floating Control; Forced Lifting and Lowering

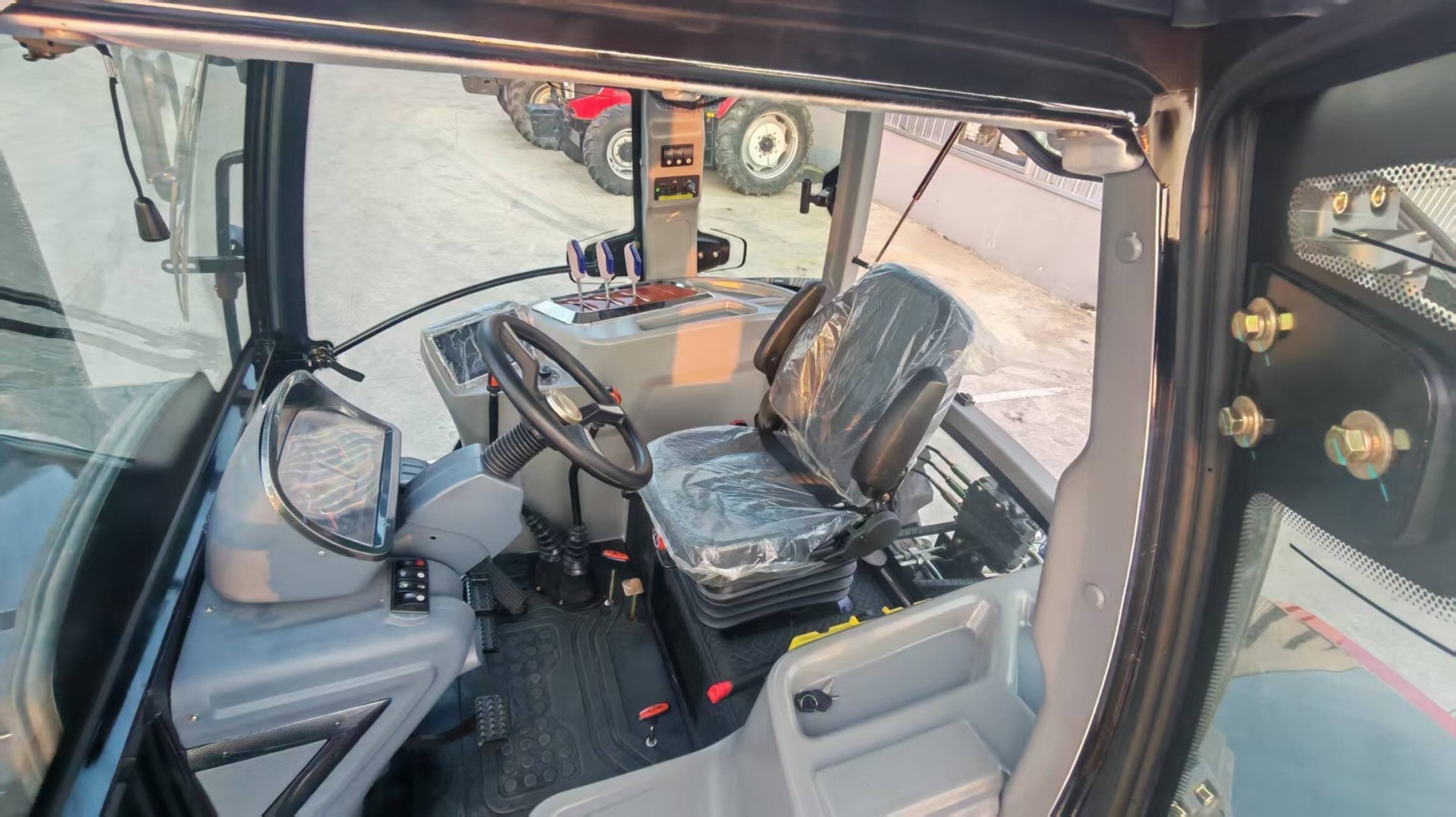

Operator Platform / Cab

Deluxe Air-conditioned Cab with Rear-view Camera

Deluxe Air-conditioned Cab with Rear-view Camera

Seat

Comfortable Adjustable Suspension Seat

Comfortable Adjustable Suspension Seat

Brake Type

Wet Disc Brake

Wet Disc Brake

Three-point Hitch

Category III Rear Three-point Hitch

Category III Rear Three-point Hitch

Tyre Size (Front / Rear)

Agricultural Tyres: 14.9-28 / 18.4-38

Agricultural Tyres: 14.9-28 / 18.4-38

PTO Speed

540/1000 rpm

540/1000 rpm

Ballast Weights

Front Ballast: 40 kg × 11; Rear Ballast: 43 kg × 4

Front Ballast: 40 kg × 11; Rear Ballast: 43 kg × 4

Standard Equipment

Electrical Socket and Toolbox

Electrical Socket and Toolbox

The DONOL DN-C Series brings DONOL tractors into the 140–200HP power class. Built around a newly tuned heavy-duty chassis, the series provides greater stability, traction and operating capability for large farms and professional agricultural contractors.

Representative models include the 180HP DONOL DN-C180 and the 200HP DN-C200. The DN-C200 is the first DONOL tractor model to reach the 200HP level, marking an important step in the development of the DONOL high-horsepower tractor range.


New-Generation DONOL Chassis

The DN-C chassis is developed for higher engine power and heavier field loads. A 2,720 mm wheelbase and 5,150 kg structural mass create a stable operating platform for large implements and intensive cultivation.

The 440 mm ground clearance improves mobility across uneven farmland. Large 14.9–26 front and 18.4–38 rear tyres provide a strong contact area, while optional radial tyre combinations are available for different traction and soil requirements.


Six-Cylinder DONOL Power

DONOL DN-C180 and DN-C200 tractors are powered by six-cylinder YTO diesel engines rated at 2,200 r/min. The engine configurations provide 180HP and 200HP for heavy ploughing, soil preparation, seeding and transport applications.

A 14-inch dry dual-action clutch transfers power through a 16F+8R transmission. Synchronised shifting and shuttle gear provide practical speed selection and convenient directional control.


Heavy-Duty DONOL Configuration

Mechanical four-wheel drive and a differential lock help maintain traction in loose soil and demanding field conditions. Wet disc brakes provide dependable braking performance during heavy operation and transport.

The rear PTO offers six- or eight-spline options with 760/850 r/min speeds. Position control, floating adjustment and three multiway hydraulic valves support a broad selection of agricultural implements.

The DONOL DN-C Series is suitable for:

  • Large-scale ploughing and cultivation

  • Deep tillage and soil preparation

  • Large seeders and fertilising equipment

  • Heavy farm transport

  • Hay and grassland operations

  • Professional agricultural contracting

With power up to 200HP, a newly tuned chassis and proven mechanical systems, the DONOL DN-C Series provides a strong and dependable tractor solution for large-scale agriculture.
