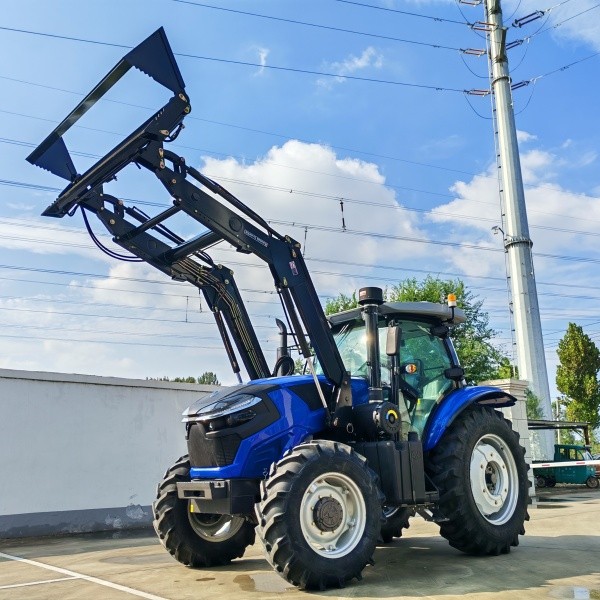

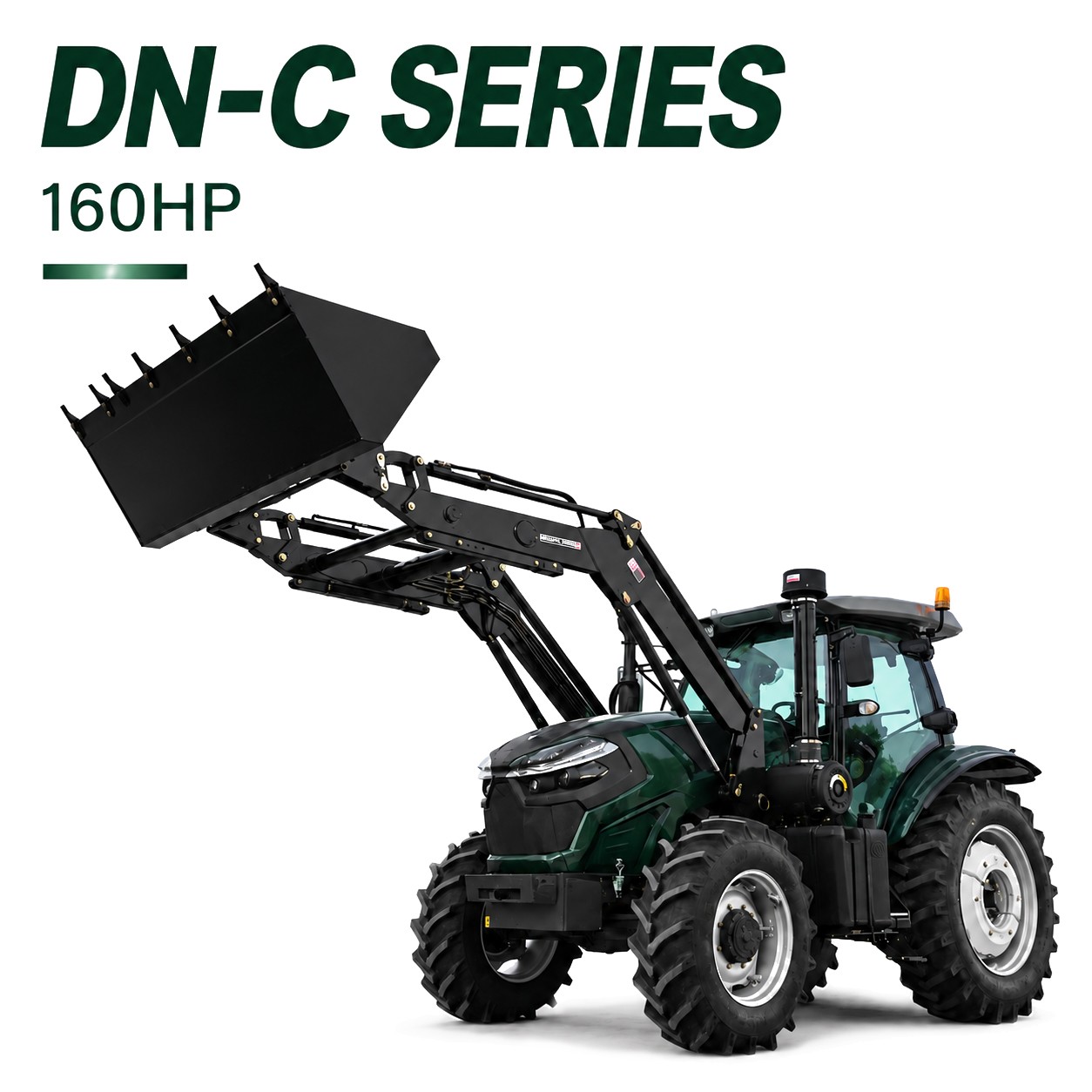

The DONOL DN1604 is a 160 HP 4WD wheeled tractor developed for South American grain, livestock and mixed-farming operations. Its YTO LR6M3L engine, 16 forward + 8 reverse gears, synchromesh transmission, and full-hydraulic steering provide a practical power platform for daily field work, implement operation and farm transport.
The TC platform adds six-cylinder power, a 16-forward/8-reverse synchromesh transmission, three hydraulic outlet sets, a 380 L fuel tank and a deluxe air-conditioned cab. These features make the DN1604 suitable for long working days and higher-demand implements on large fields. It is especially relevant to South American soybean, corn, wheat, sugarcane and pasture operations that require strong traction, hydraulic flexibility and operator comfort.
Key Selling Points
· 160 HP 4WD power platform with YTO LR6M3L
· 16 forward + 8 reverse gears, synchromesh transmission for practical field and transport operation

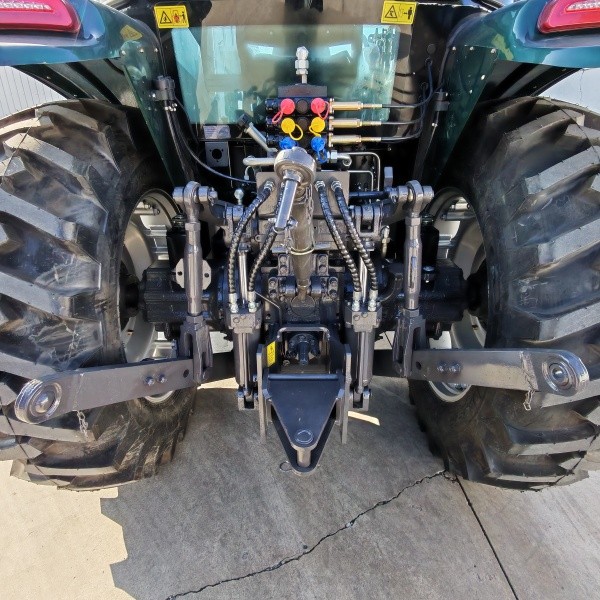

· 3 sets hydraulic outlets, 540/1000 PTO and three-point linkage

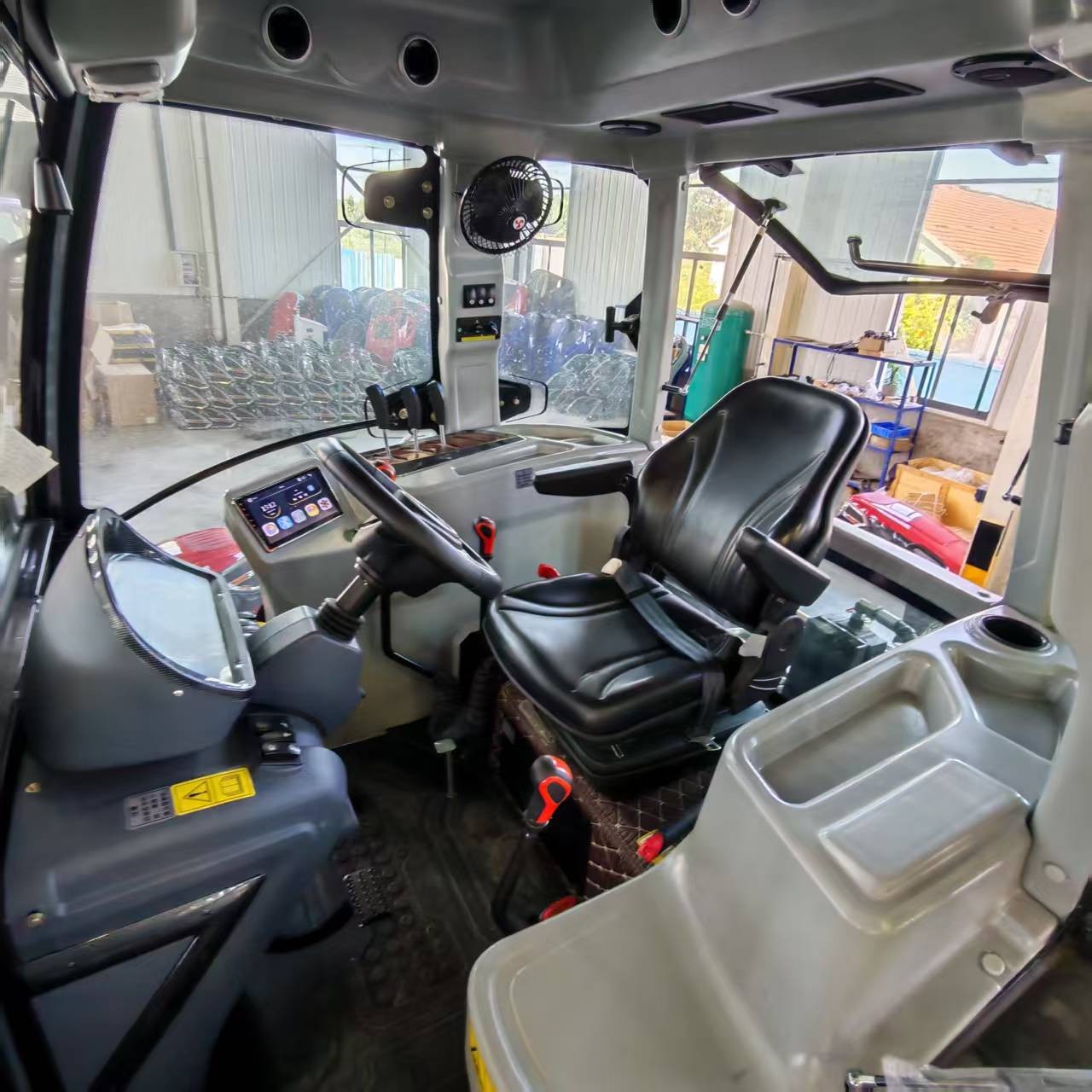

· Deluxe air-conditioned cab with rear-view camera with adjustable suspension seat
· Agricultural tyres: 14.9-28/18.4-38
· 380L fuel capacity for extended working schedules
Technical Highlights
Specification Item | Specification |
Model | DN1604 |
Product Name | Wheeled Tractor |
Drive Type | 4WD |
Series / Chassis Platform | TC Platform |
Rated Power | 160 HP |
Overall Dimensions (L × W × H) | 5310 × 2325 × 3000 mm |
Wheelbase | 2720 mm |
Minimum Ground Clearance | 490 mm |
Operating Weight | 5600 kg |
Engine Model | YTO LR6M3L |
Engine Configuration | Six-cylinder Diesel Engine |
Emission Standard | China Non-road Stage II |
Rated Engine Speed | 2300 r/min |
Clutch | 14-inch Dual-acting Dry Clutch with Hydraulic Clutch Control |
Transmission | 16 Forward + 8 Reverse Gears, Synchromesh Transmission |
Gear Shift Type | Synchromesh Shift |
Fuel Tank Capacity | 380 L |
Steering System | Full-hydraulic Steering |
Hydraulic Outlets | 3 sets |
Hydraulic System | Floating Control; Forced Lifting and Lowering |

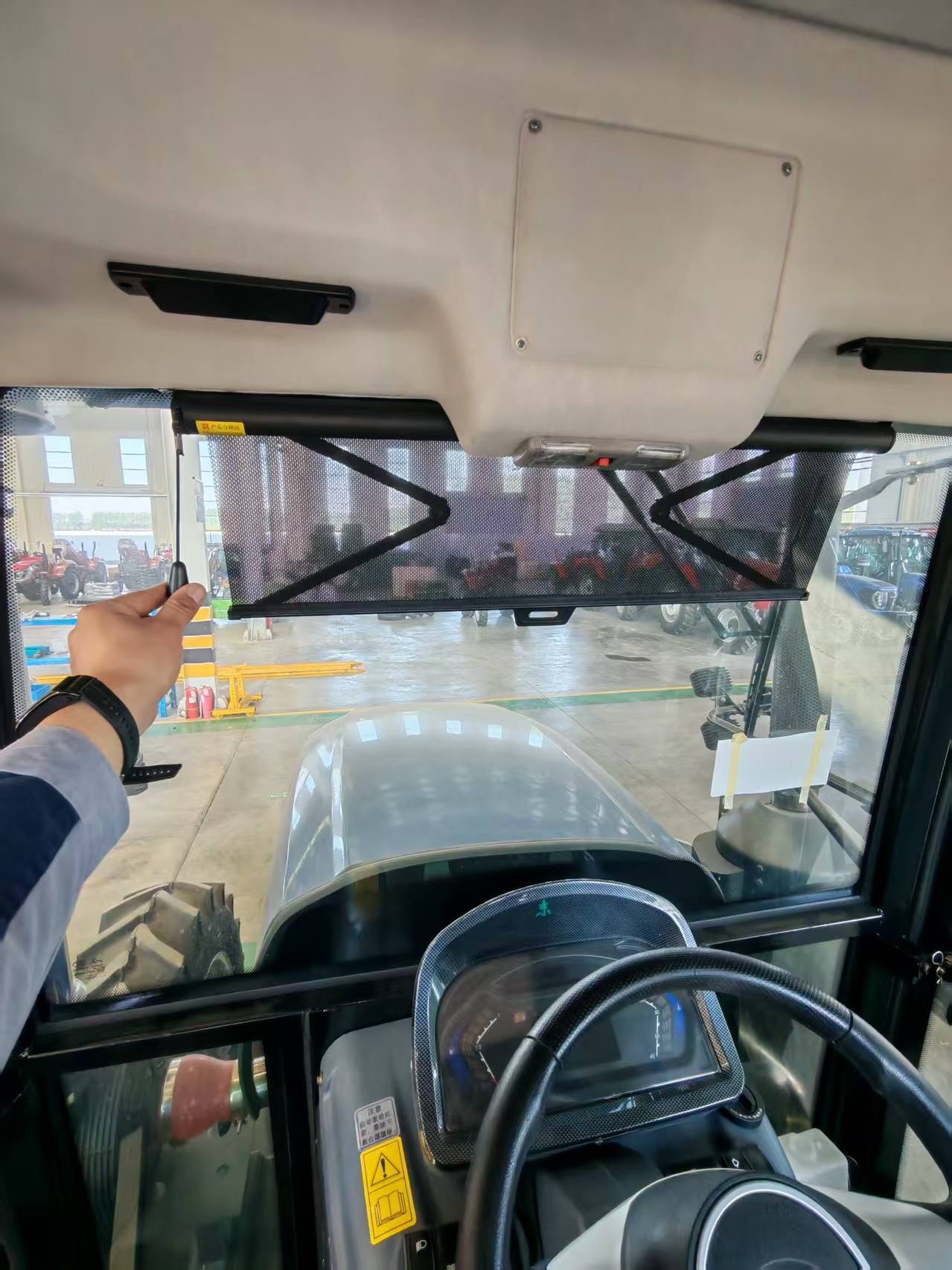

Operator Platform / Cab | Deluxe Air-conditioned Cab with Rear-view Camera |
Seat | Comfortable Adjustable Suspension Seat |
Brake Type | Wet Disc Brake |
Three-point Hitch | Category III Rear Three-point Hitch |
Tyre Size (Front / Rear) | Agricultural Tyres: 14.9-28 / 18.4-38 |
PTO Speed | 540/1000 rpm |
Ballast Weights | Front Ballast: 40 kg × 11; Rear Ballast: 43 kg × 4 |
Standard Equipment | Electrical Socket and Toolbox |
