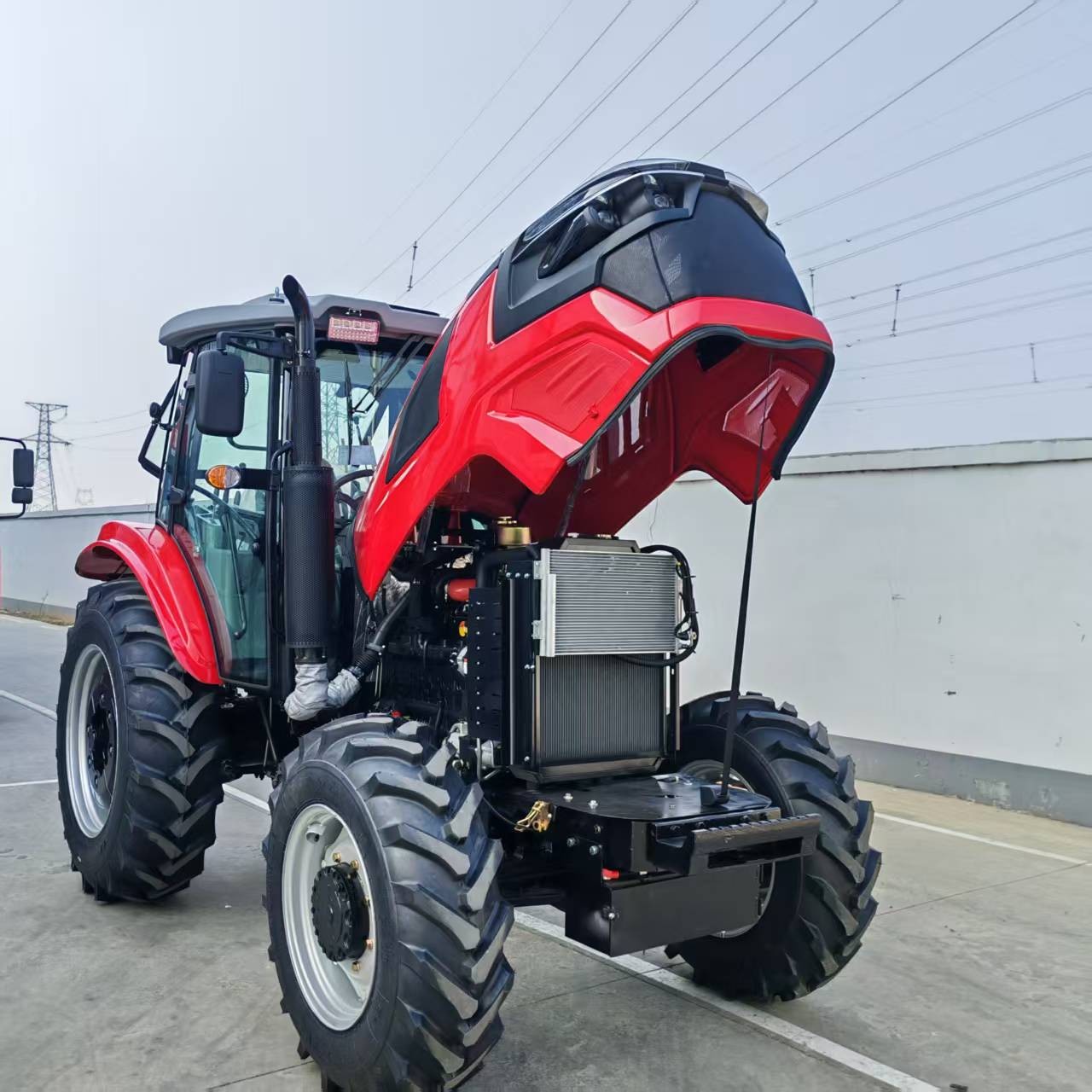

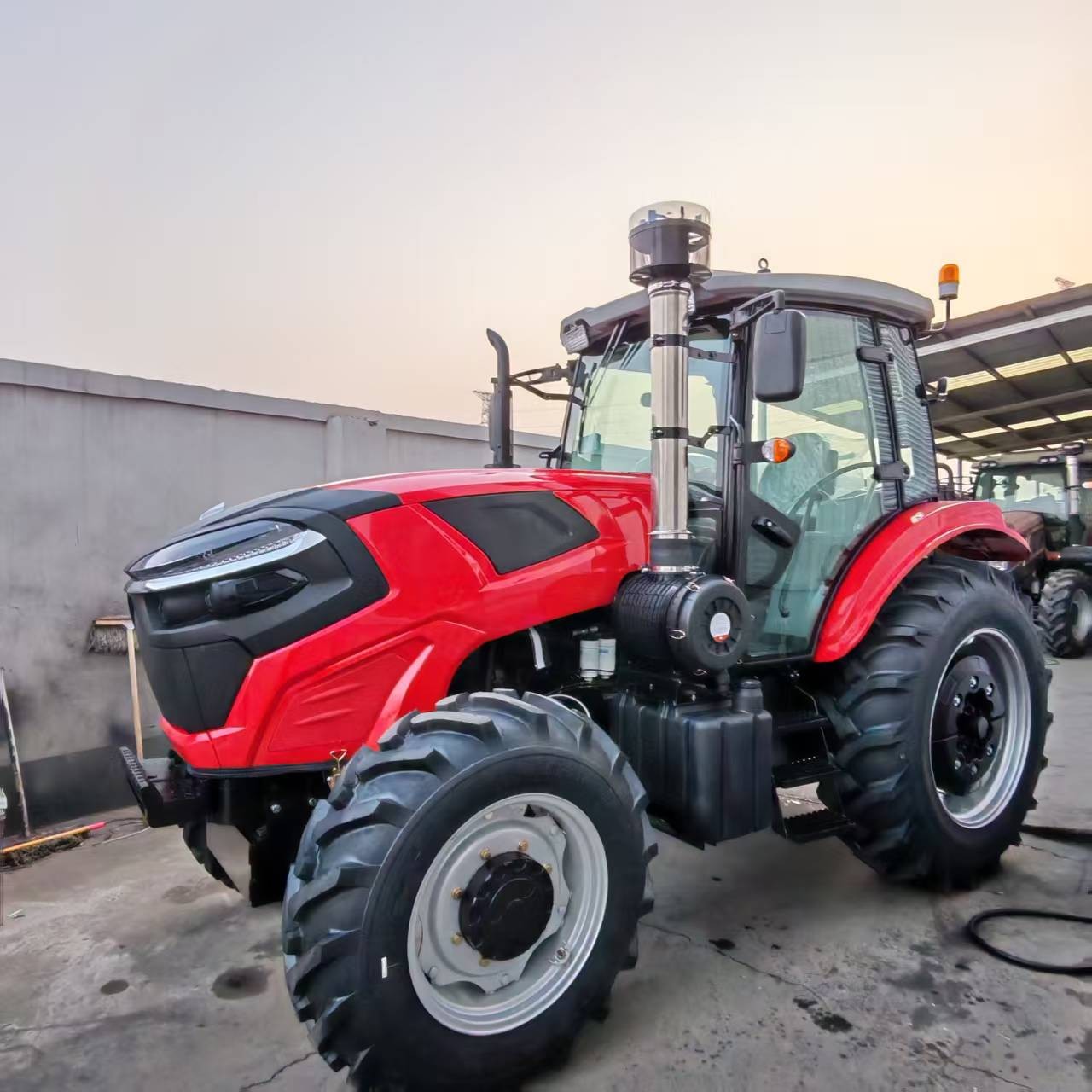

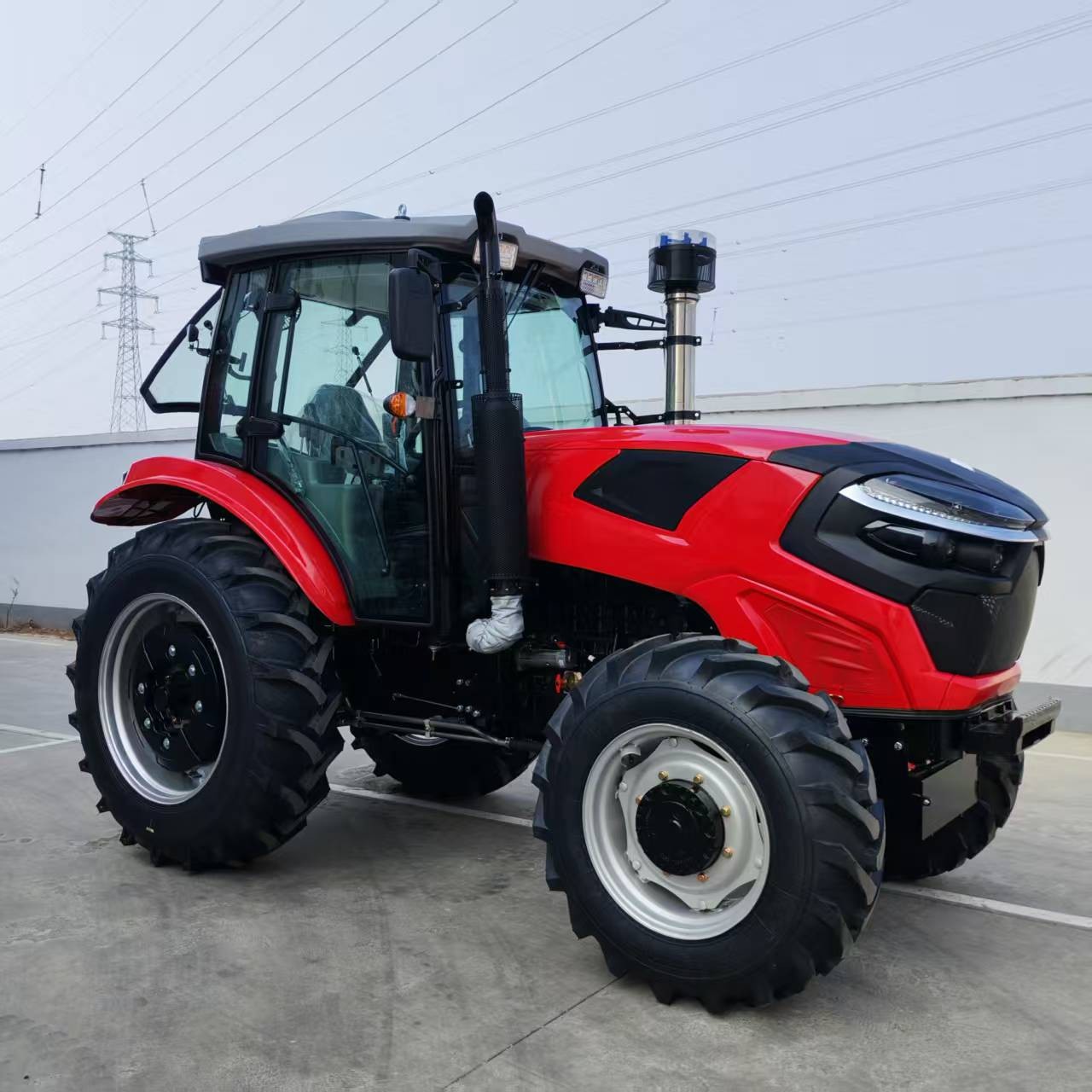

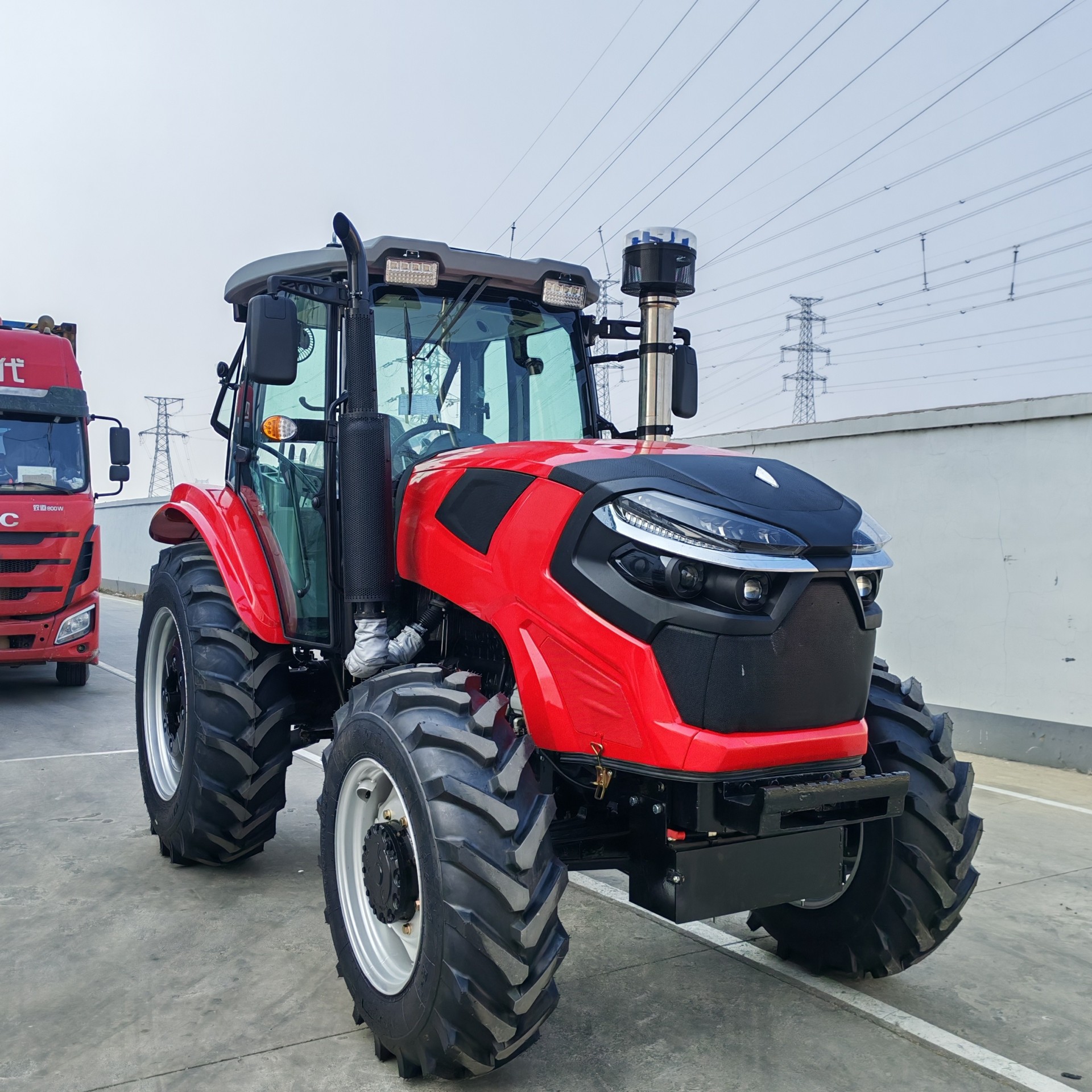

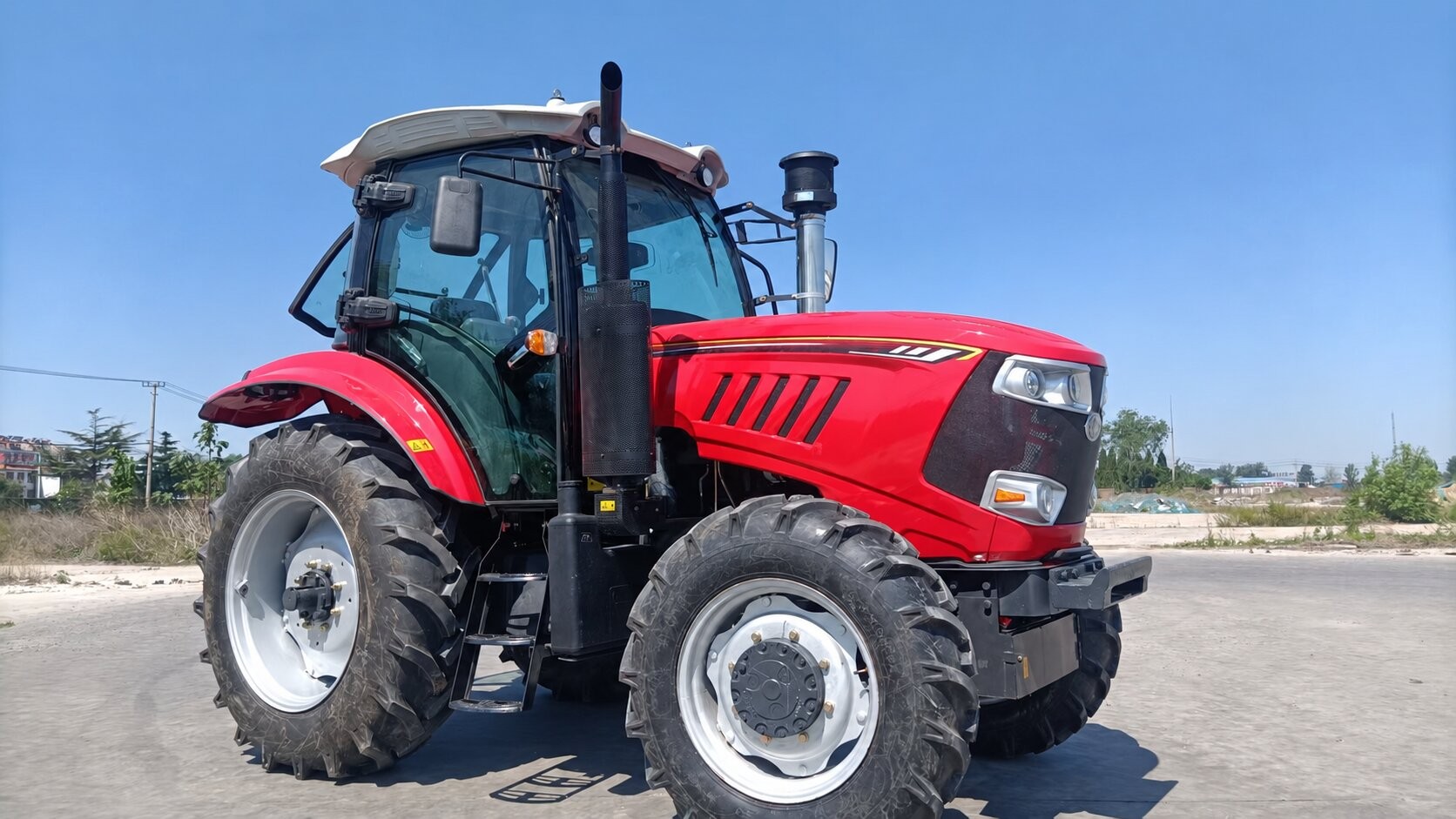

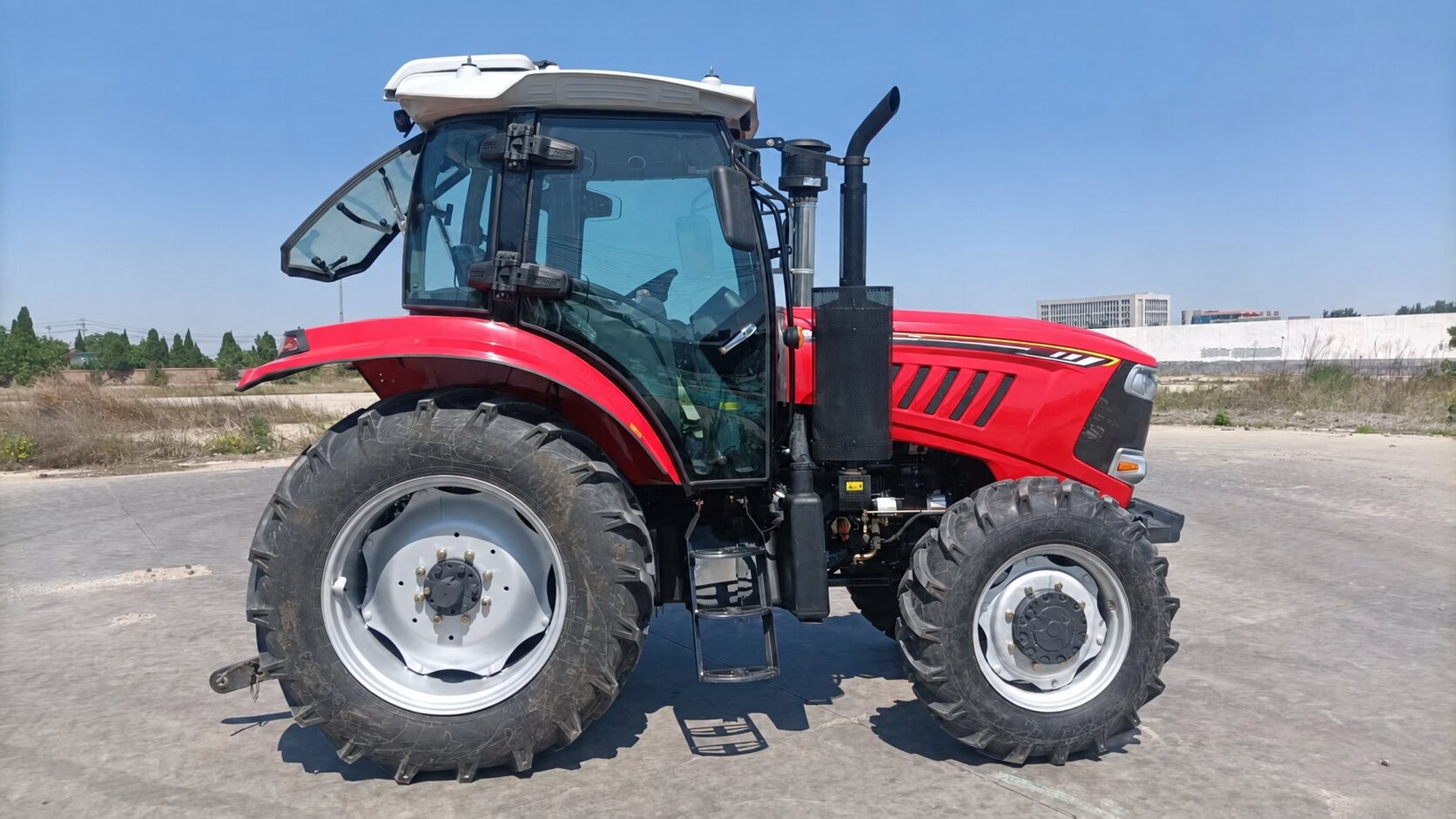

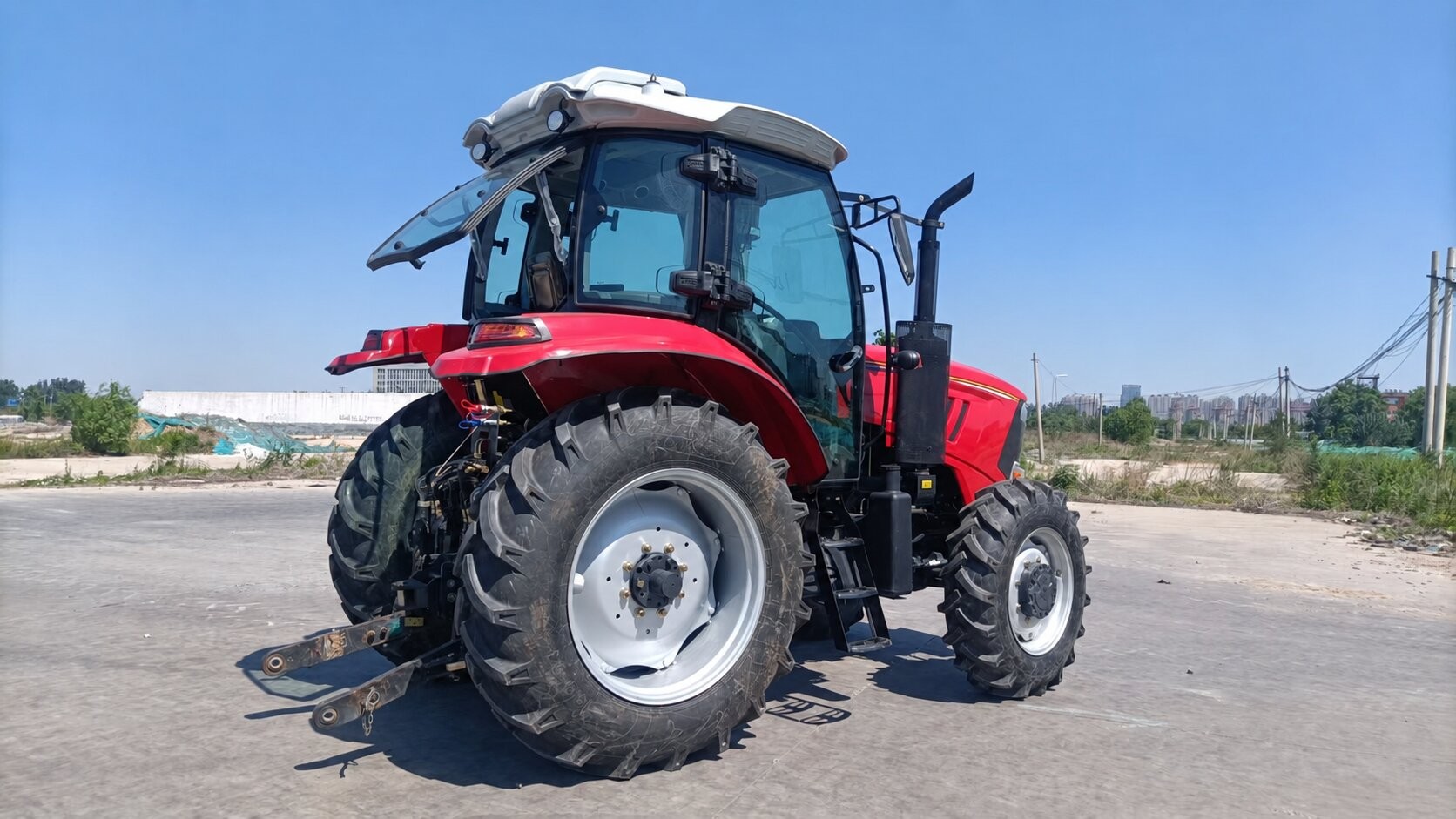

The DONOL DN1004 is a 100 HP 4WD wheeled tractor developed for South American grain, livestock and mixed-farming operations. Its YTO LR4V5P engine, 16 forward + 8 reverse gears, collar-shift transmission, and full-hydraulic steering provide a practical power platform for daily field work, implement operation and farm transport.
Built on the TD platform, the DN1004 combines a spacious air-conditioned cab, wet disc brakes, two hydraulic outlet sets and a rear three-point linkage. With PTO speeds of 540/1000 and agricultural tyres sized 12.4-24/16.9-34, it can support tillage, planting support, hay work and transport across diversified farms. For South American distributors, position this model as a versatile tractor for soybean, maize, wheat, cattle and mixed-farming regions where one machine must cover multiple seasonal tasks.
Key Selling Points
· 100 HP 4WD power platform with YTO LR4V5P
· 16 forward + 8 reverse gears, collar-shift transmission for practical field and transport operation

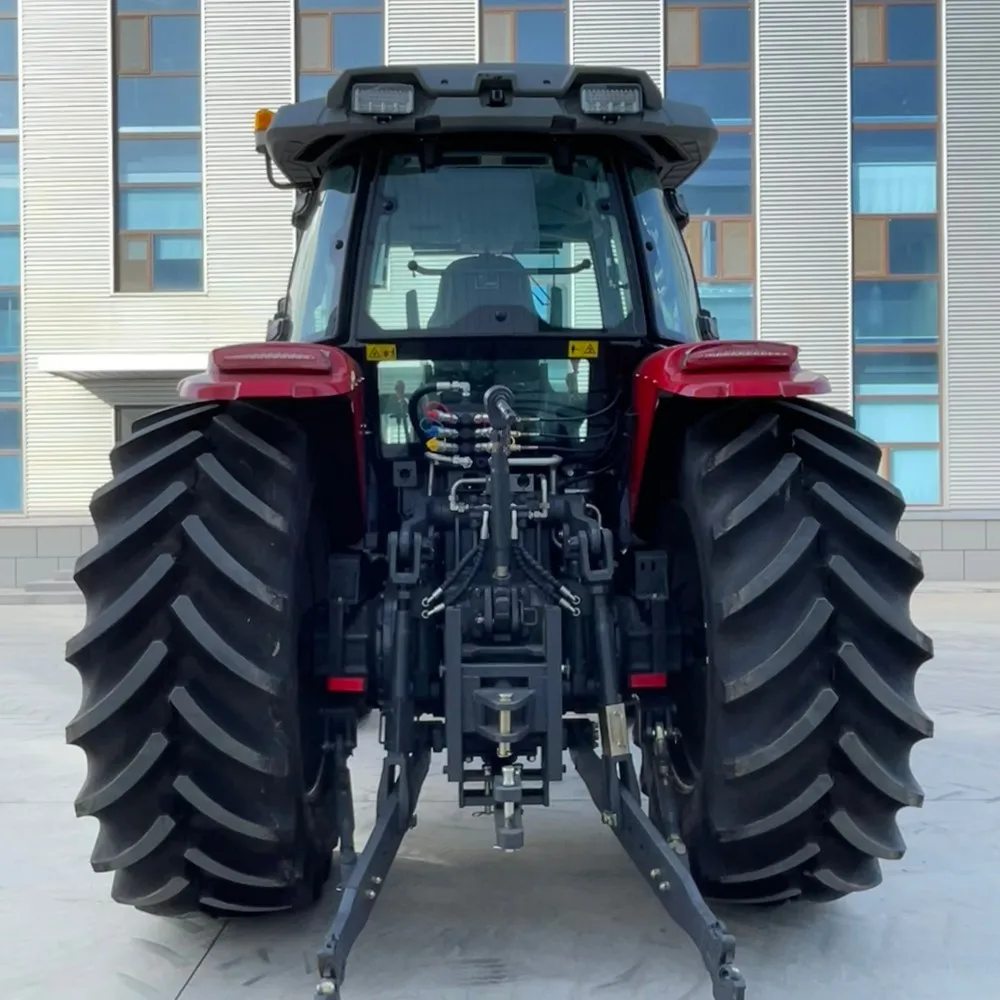

· 2 sets hydraulic outlets, 540/1000 PTO and three-point linkage

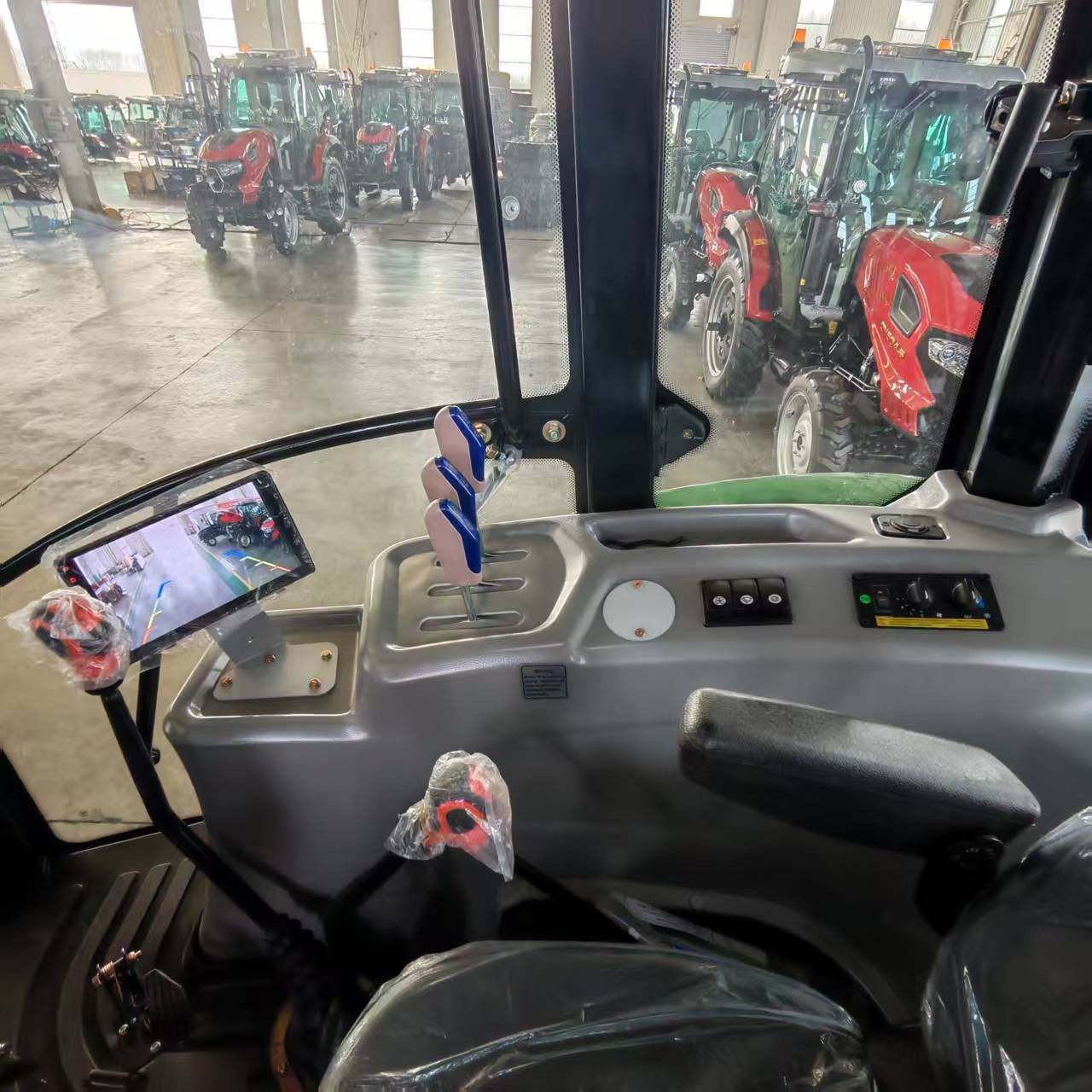

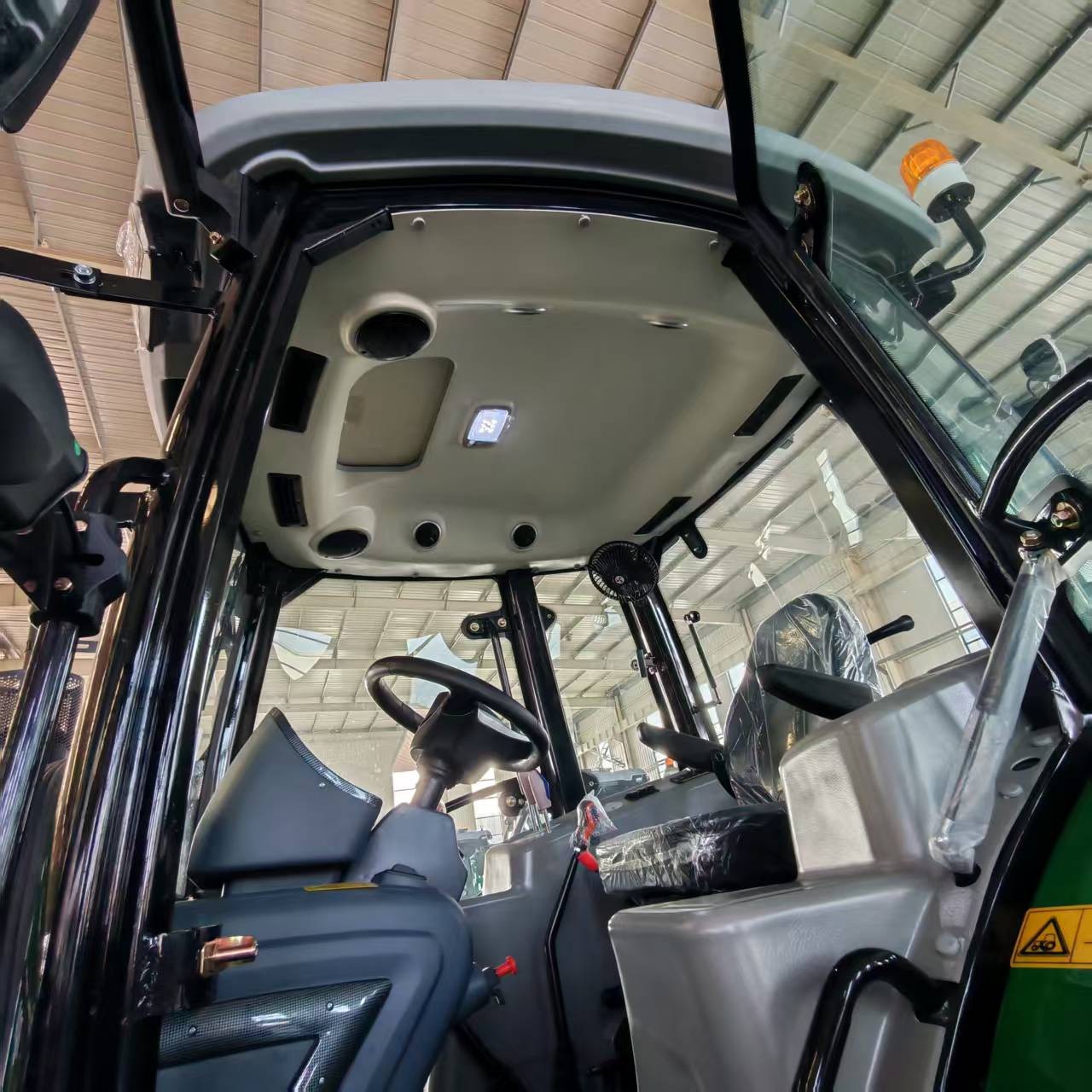

· Air-conditioned cab with rear-view camera with adjustable suspension seat
· Agricultural tyres: 12.4-24/16.9-34
Technical Highlights
Specification Item | Specification |
Model | DN1104 |
Product Name | Wheeled Tractor |
Drive Type | 4WD |
Series / Chassis Platform | TD Platform |
Rated Power | 110 HP |
Overall Dimensions (L × W × H) | 4750 × 2200 × 2910 mm cab |
Wheelbase | 2320 mm |
Minimum Ground Clearance | 420 mm |
Operating Weight | 4650 kg |
Engine Model | YTO LR4M3Z |
Engine Configuration | Four-cylinder Diesel Engine |
Emission Standard | China Non-road Stage II |
Rated Engine Speed | 2400 r/min |
Clutch | 12-inch Dual-acting Dry Clutch |
Transmission | 16 Forward + 8 Reverse Gears, Collar-shift Transmission |
Gear Shift Type | Collar Shift |
Fuel Tank Capacity | 190 L |
Steering System | Full-hydraulic Steering |
Hydraulic Outlets | 2 sets |
Hydraulic System | Floating Control; Forced Lifting and Lowering |
Operator Platform / Cab | Air-conditioned Cab with Rear-view Camera |
Seat | Comfortable Adjustable Suspension Seat |
Brake Type | Wet Disc Brake |
Three-point Hitch | Category III Rear Three-point Hitch |
Tyre Size (Front / Rear) | Agricultural Tyres: 12.4-24 / 16.9-34 |
PTO Speed | 540/1000 rpm |
Ballast Weights | Front Ballast: 40 kg × 11; Rear Ballast: 43 kg × 4 |
Standard Equipment | Electrical Socket and Toolbox |
