Technical Parameters
Item | D120 | D140 / D160 |
POWERTRAIN | ||
Engine brand model | Yuchai / YTO | Yuchai / YTO |
Number of cylinders | 4 | 4 |
Rated engine speed | 2200 r/min | 2200 r/min |
Rated power | 120 hp | 140 / 160 hp |
TRANSMISSION | ||
Clutch | 12 in, dry, dual action | 14 in, dry, dual action |
Shift mode | Sliding gear/synchronizer with shuttle gear | Sliding gear/synchronizer with shuttle gear |
Number of gears | 16F+8R | 16F+8R |
Four-wheel drive control | Mechanical | Mechanical |
Differential lock | Mechanical | Mechanical |
Brake form | wet, disc type | wet, disc type |
PTO spline & speed | 6/8 keys; 760/850 | 6/8 keys; 760/850 |
TIRES | ||
Front wheels | 12.4–24 | 12.4–24 |
Rear wheels | 16.9–34 | 16.9–34 |
Optional wheels | 420/85R34–320/85R24; 460/85R34–340/85R24 | 420/85R34–320/85R24; 460/85R34–340/85R24 |
IMPLEMENT & HYDRAULICS | ||
Lifter control type | Position control, floating adjustment | Position control, floating adjustment |
Number of multiway valves | 4 | 4 |
DIMENSIONS & WEIGHT | ||
Dimensions | 4750×2150×2910 mm (CAB) | 4750×2150×2910 mm (CAB) |
Wheelbase | 2320 mm | 2320 mm |
Ground clearance | 420 mm | 420 mm |
Structural mass | 4490 kg (CAB) | 4490 kg (CAB) |

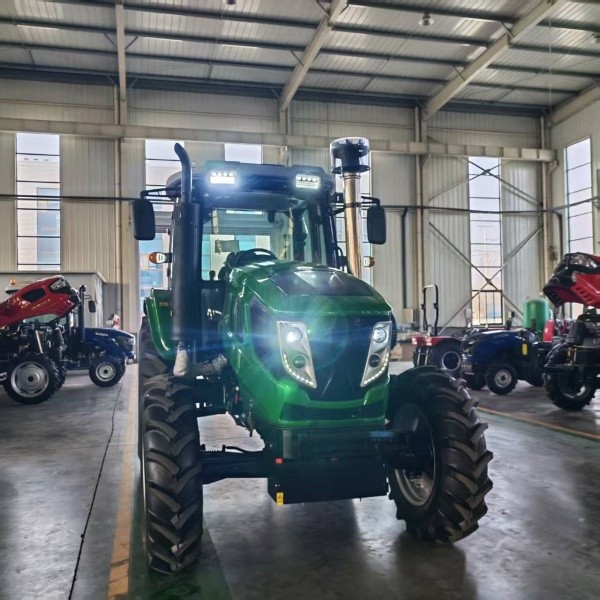

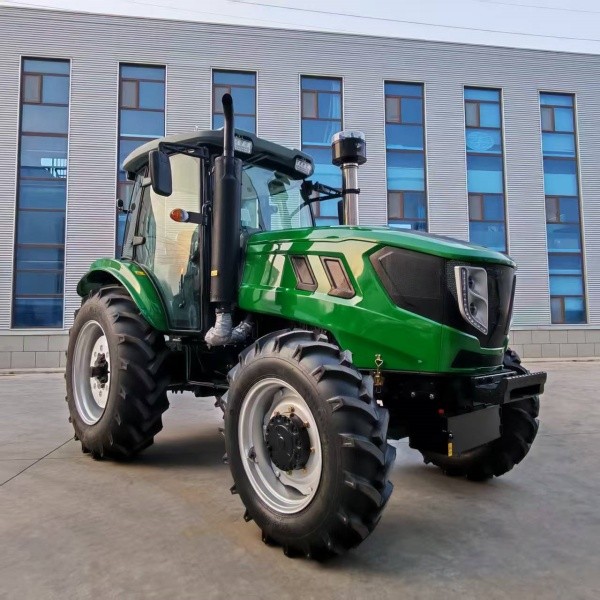

The DONOL DN-D Series is a 100–160HP agricultural tractor range built on an upgraded heavy-duty chassis. It is developed for medium and large farms that require stronger power, improved stability and compatibility with larger agricultural implements.
The series includes the DONOL DN-D120, DN-D140 and DN-D160, providing 120HP, 140HP and 160HP power options. It is suitable for intensive cultivation, soil preparation, seeding, harvesting support and heavy farm transport.
Upgraded DONOL Heavy-Duty Chassis

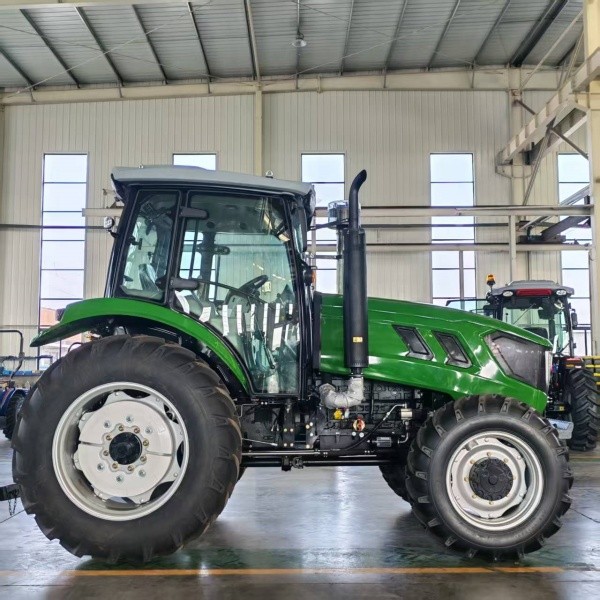

The reinforced DN-D chassis, 2,320 mm wheelbase and 4,490 kg structural mass create a stable platform for high-power field operations. A minimum ground clearance of 420 mm helps the tractor pass over uneven fields and crop rows.
DONOL DN-D Series tractors are powered by four-cylinder Yuchai or YTO diesel engines rated at 2,200 r/min. The DN-D120 uses a 12-inch dry dual-action clutch, while the DN-D140 and DN-D160 use a larger 14-inch clutch for increased power transmission capacity.
DONOL 16F+8R Transmission
The 16F+8R transmission provides a broad selection of speeds for heavy cultivation, implement operation and transport. Synchronised shifting and shuttle gear make speed and direction control more convenient.
Mechanical four-wheel drive and a differential lock improve traction in loose soil, wet fields and difficult ground conditions. Wet disc brakes provide dependable braking and greater durability during intensive operation.
Powerful DONOL Implement Capability

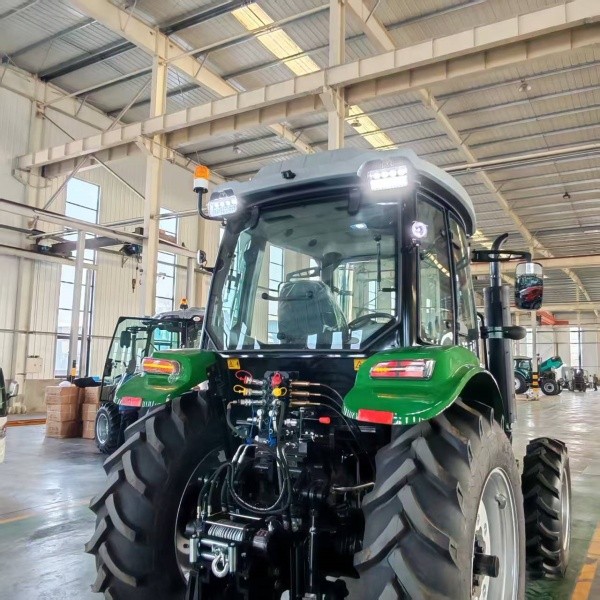

The rear PTO is available with six- or eight-spline options and 760/850 r/min speeds. Position control, floating adjustment and four multiway hydraulic valves support a broad range of PTO-driven and hydraulic implements.
The DONOL DN-D Series is suitable for:
Large-scale ploughing and cultivation
Harrowing and soil preparation
Seeding and fertilising
Mowing and hay operations
Heavy farm transport
Large hydraulic implements
Professional agricultural contracting
With an upgraded chassis, power options up to 160HP and enhanced transmission and hydraulic systems, the DONOL DN-D Series provides dependable performance for demanding agricultural operations.
