Technical Parameters

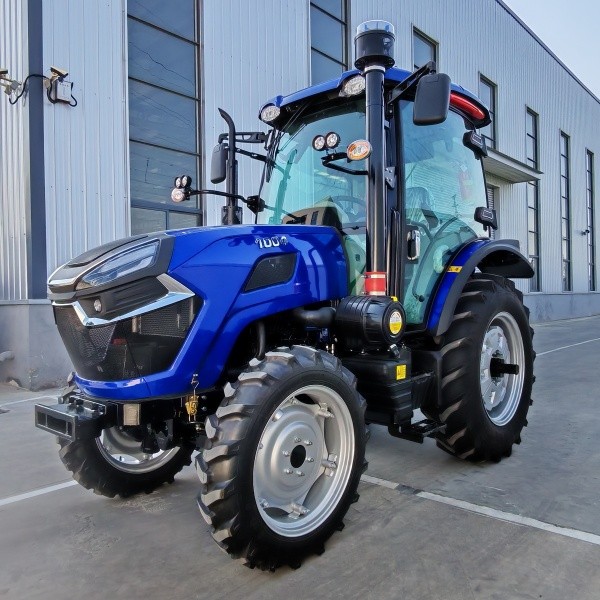

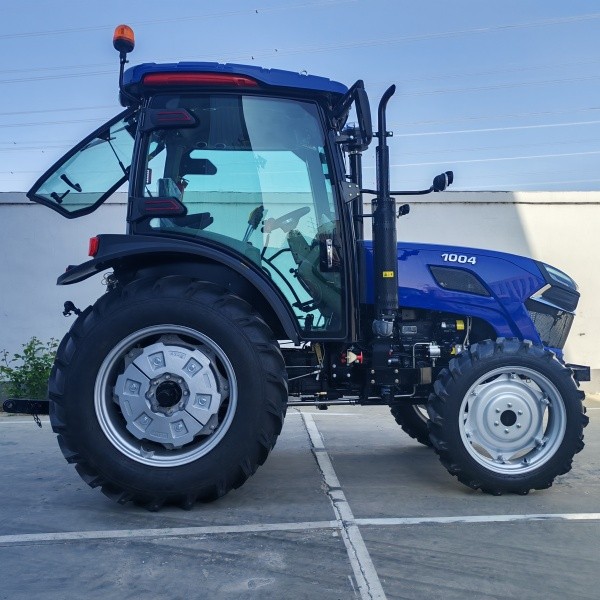

The DONOL DB Series is a medium and compact horsepower tractor range covering 50HP to 100HP. Built on the stronger DB chassis, the series delivers a practical combination of power, stability and versatile agricultural performance.
Representative models include the 70HP B70 and 90HP B90. With four-wheel drive, a 12F+12R shuttle transmission and wet disc brakes, DONOL DB Series tractors are suitable for field cultivation, farm transport, loader work and general agricultural operations.
Reliable DONOL Power
DONOL DB Series tractors use four-cylinder diesel engines rated at 2,400 r/min. FAW and YTO engine options are available according to the selected horsepower and market requirements.
The heavier DB chassis provides a stable working platform for medium-duty agricultural operations and helps improve traction when working with larger implements.
Upgraded DONOL Transmission
The 12F+12R transmission combines sliding gears, synchronisers and shuttle gear, providing a broad selection of forward and reverse speeds. It is especially convenient for work requiring frequent directional changes, including front-loader operation.
Mechanical four-wheel drive and a differential lock improve pulling performance on loose soil, wet fields and uneven ground. Wet disc brakes provide reliable braking and increased durability during intensive operation.
Specification Item | Specification |
Model | DN804 |
Product Name | Wheeled Tractor |
Drive Type | 4WD |
Series / Chassis Platform | TB Platform |
Rated Power | 80 HP |
Overall Dimensions (L × W × H) | 4020 × 1730 × 2770 mm (cab) / 4020 × 1770 × 2710(ROPS) |
Wheelbase | 2060 mm |
Minimum Ground Clearance | 345 mm |
Operating Weight | 2680 kg (cab) / 2490 kg(ROPS) |
Engine Model | YTO YD4100ZT |
Engine Configuration | Four-cylinder Diesel Engine |
Emission Standard | China Non-road Stage II |
Rated Engine Speed | 2400 r/min |
Clutch | 11-inch Dual-acting Dry Clutch |
Transmission | 12 Forward + 12 Reverse Gears, Shuttle Shift, Collar-shift Transmission |
Gear Shift Type | Collar Shift |
Fuel Tank Capacity | 90 L |
Steering System | Full-hydraulic Steering |
Hydraulic Outlets | 2 sets |
Hydraulic System | Floating Control; Forced Lifting and Lowering |
Operator Platform / Cab | Air-conditioned Cab |
Seat | Comfortable Adjustable Suspension Seat |
Brake Type | Wet Disc Brake |
Three-point Hitch | Category I Rear Three-point Hitch |
Tyre Size (Front / Rear) | Agricultural Tyres: 8.3-24 / 11-32; Optional: 9.5-24 / 14.9-30 |
PTO Speed | 540/1000 rpm |
Ballast Weights | Front Ballast: 25 kg × 6; One Layer of Rear Ballast |
Standard Equipment | Electrical Socket and Toolbox |
Versatile Implement Capability

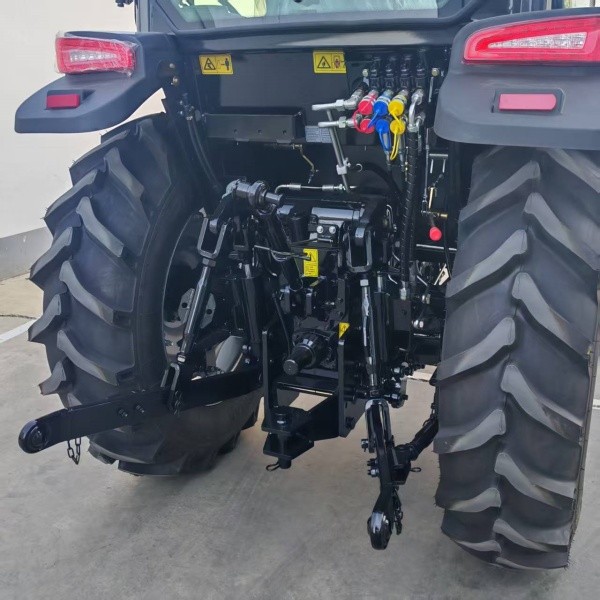

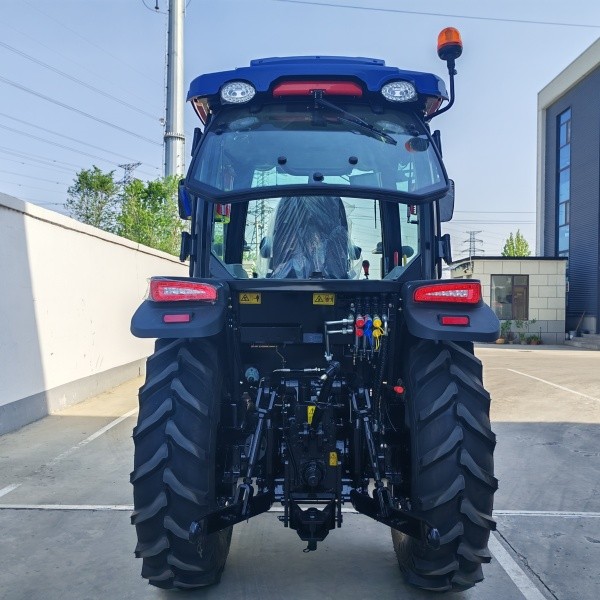

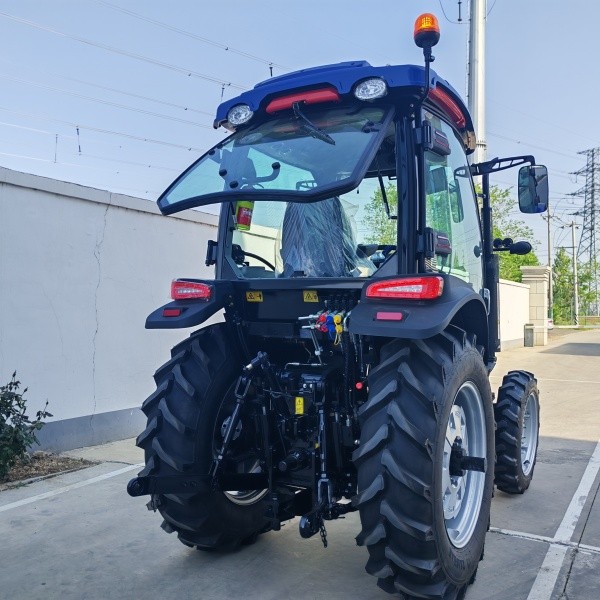

A six-spline rear PTO with 540/760 r/min speeds supports a wide selection of agricultural implements. Position control, floating adjustment and three multiway hydraulic valves provide flexible hydraulic implement operation.
DONOL DB Series tractors can be matched with:
Ploughs and disc harrows
Rotary tillers and cultivators
Mowers and hay equipment
Agricultural sprayers
Seeders and fertiliser spreaders
Farm trailers
Compatible front loaders
DONOL Cab and ROPS Options

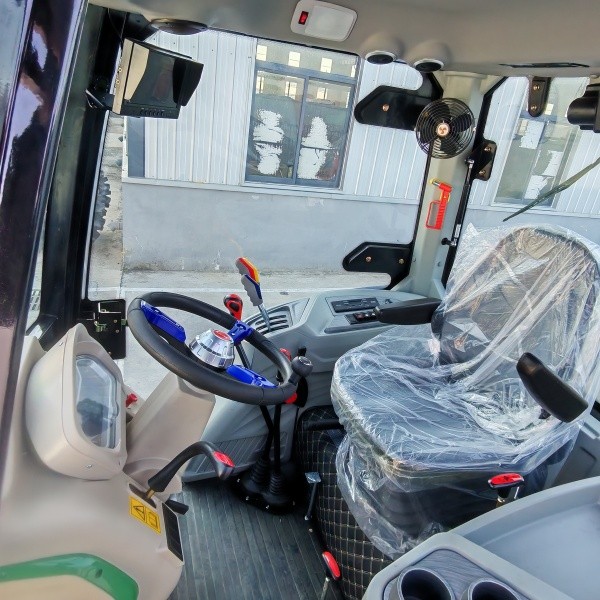

The DONOL DB Series is available with either an enclosed cab or an open ROPS platform. The cab provides additional protection and comfort for longer working hours, while the ROPS version offers easy access and a lower structural weight.
A 2,072 mm wheelbase and 345 mm ground clearance provide a balance of stability and field mobility. Optional radial tyre combinations are also available for different soil, traction and transport requirements.
With 50–100HP power options, a strong chassis and upgraded standard configurations, the DONOL DB Series offers a dependable solution for farmers, contractors, dealers and agricultural equipment distributors.
