Technical Parameters
Item | DN754 |
POWERTRAIN | |
Engine brand model | DM02P / DM02-LEA00 |
Displacement / cylinders | 2.4 L / 4 |
Rated engine speed | 2400 r/min |
Rated power | 75 hp |
Maximum torque | 320 N·m |
Emission standard | EPA Tier 4 Final / EU Stage V |
Fuel tank volume | 100 L |
TRANSMISSION | |
Clutch | 11 in, dry, dual action |
Shift mode | Sliding gear/synchronizer with shuttle gear |
Number of gears | 12F+12R |
Driving speed | 1.95–34.13 km/h |
Four-wheel drive control | Mechanical |
Differential lock | Mechanical |
Brake form | Wet, disc type |
PTO spline & speed | 6/8 keys; 540/760 or 540/1000 |
TIRES | |
Front wheels | 8.3–20 |
Rear wheels | 11–32 |
Optional wheels | 420/85R28–280/85R20; 380/85R28–280/85R20; 380/85R30–280/85R20; 420/85R30–280/85R24; 460/85R30–320/85R24 |
IMPLEMENT & HYDRAULICS | |
Lifter control type | Position control, floating adjustment |
Lift capacity | ≥2400 kg |
Multiway valves | 2 way / 3 way |
Pump flow rate | 50 L/min |
DIMENSIONS & WEIGHT | |
Dimensions | 4105×1700×2745 mm (CAB); 4105×1745×2675 mm (ROPS) |
Wheelbase | 2060 mm |
Front / rear track | 1250 / 1320 / 1390 / 1460 mm; rear 1200–1600 mm |
Ground clearance | 345 mm |
Structural mass | 2490 kg (ROPS); 2680 kg (CAB) |

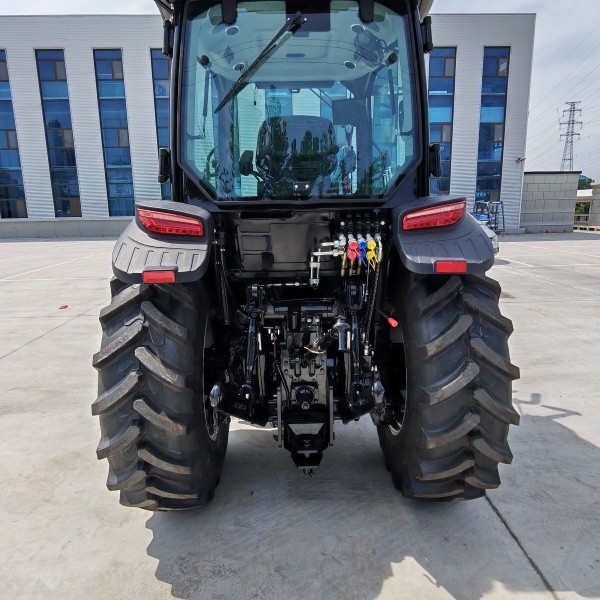

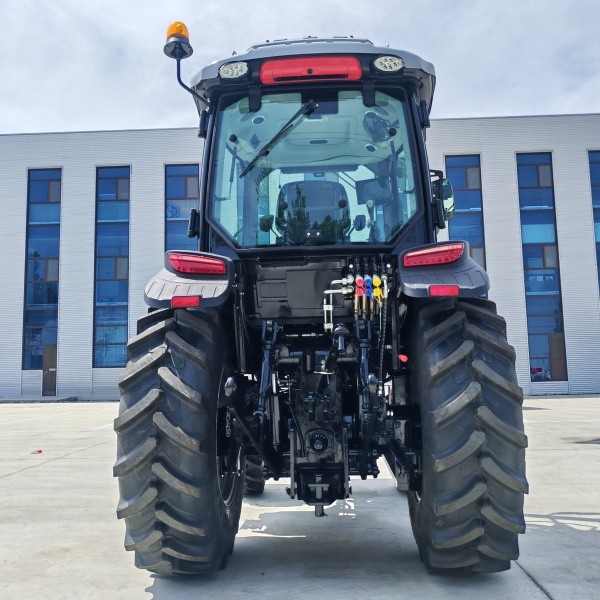

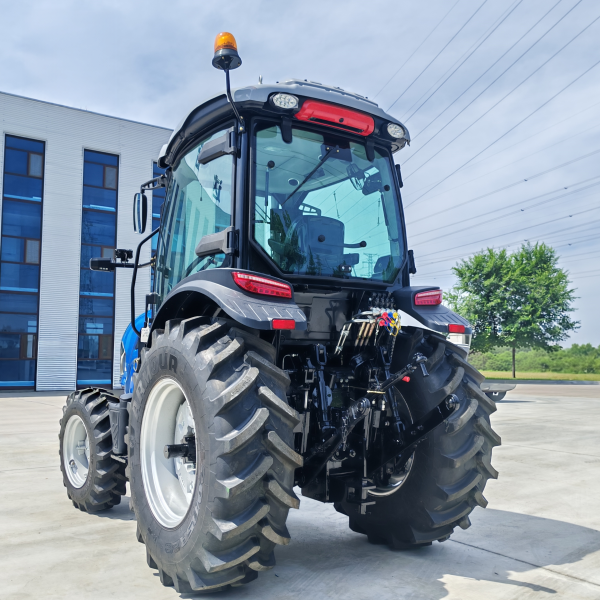

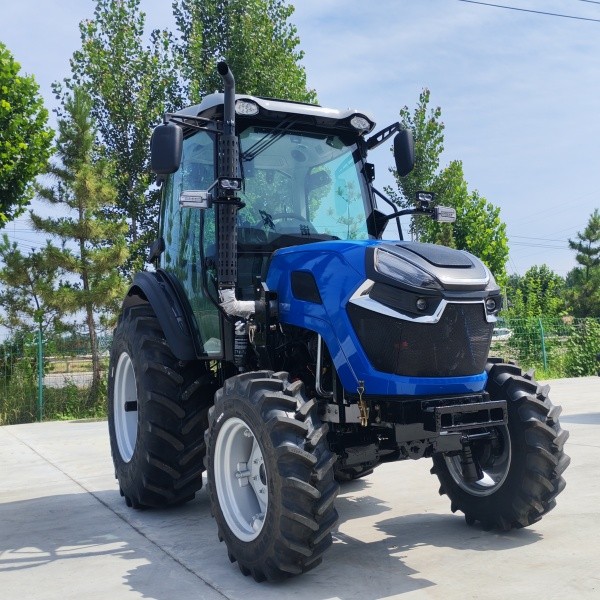

The DONOL DN754 is a 75HP four-wheel-drive agricultural tractor developed for farms, ranches and utility applications in the United States and Canada.
Powered by a 2.4 L four-cylinder DM02P / DM02-LEA00 diesel engine, the DN754 delivers 320 N·m of maximum torque at a rated speed of 2,400 r/min. The North American engine configuration meets U.S. EPA Tier 4 Final emission requirements. Canadian off-road diesel emission standards are aligned with U.S. EPA standards, while the applicable engine documents and import requirements should be confirmed for each destination.
Reliable Power and Transmission
The DONOL DN754 uses a 12F+12R transmission with synchroniser and shuttle gear, providing convenient speed selection for field work, transport and loader operation. Mechanical four-wheel drive and a differential lock improve traction on wet soil, loose ground, slopes and snow-covered surfaces.
Wet disc brakes provide dependable braking performance, while the 100 L fuel tank supports longer working periods with fewer refuelling stops.
Powerful Hydraulics and Flexible PTO
A 50 L/min hydraulic pump and a rear lift capacity of at least 2,400 kg allow the DN754 to work with a broad range of agricultural implements.
Available PTO configurations include 540/760 or 540/1000 r/min with six- or eight-spline options. The tractor can be matched with rotary tillers, mowers, ploughs, sprayers, trailers, post-hole diggers and compatible front loaders.
Designed for North American Agriculture

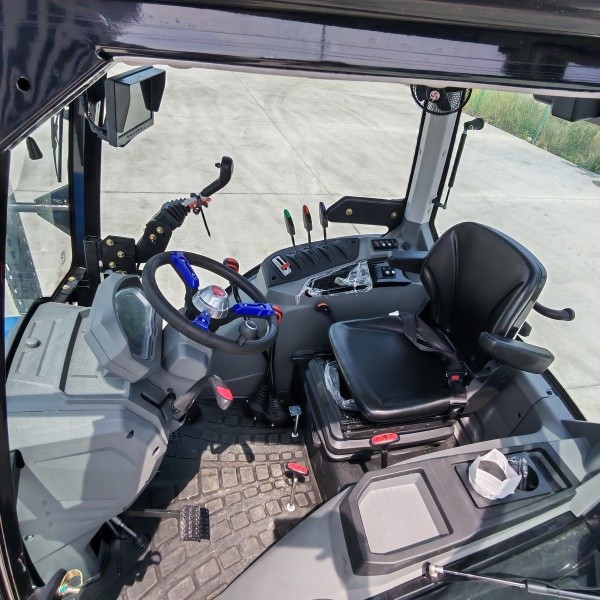

The DN754 is available with either a ROPS platform or an enclosed cab. Multiple radial tyre combinations and adjustable front and rear wheel tracks are available for different crops, terrain and working conditions.
With 345 mm of ground clearance, strong hydraulic performance and versatile implement compatibility, the DONOL DN754 is suitable for:
Field cultivation and soil preparation
Ranch and livestock operations
Mowing and hay work
Front-loader material handling
Farm transport
Landscaping and property maintenance
Snow removal and municipal work
The DONOL DN754 combines EPA Tier 4 Final power, dependable 4WD traction and practical hydraulic capability in a versatile 75HP tractor for North American customers.
Contact DONOL to confirm the required cab, tyres, PTO configuration, implements and emission documentation for your market.
